- MICROSCOPE WITH CAMERA SYSTEM || This advanced trinocular viewing head microscope comes with a high-fidelity color microscopy camera for delivering true, real-time 1080p HD images to a TV, monitor, or PC via the included HDMI and USB 2.0 cables
- OPTICAL EXCELLENCE || High-quality DIN achromat optics in 4x, 10x, semi-plan 40xR*, and 100xR* (*spring-loaded) oil objectives provide superior, 40X-1000X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast. The rugged, die-cast aluminum frame with all brass gears and anti-mold optics is designed for years of heavy use
- CAPTURE STILL IMAGES & VIDEO || A color CMOS camera sensor captures high resolution, full-color still images at 5 megapixels and video at 15 frames per second to your PC or included SD card
- IMAGE PROCESSING SOFTWARE || Further analyze images on your PC with the included software featuring real-time intelligent flatfield correction; static and dynamic measurements and annotation; automatic counting; and much more
- ADVANCED MICROSCOPY || ACCU-SCOPE EXC-123-HD microscope is ideal for brightfield observation, phase contrast, and simple polarization microscopy
The Accu-Scope EXC-123-HD is a complete microscopy system that includes both a compound microscope and HD-Lite camera for advanced study.

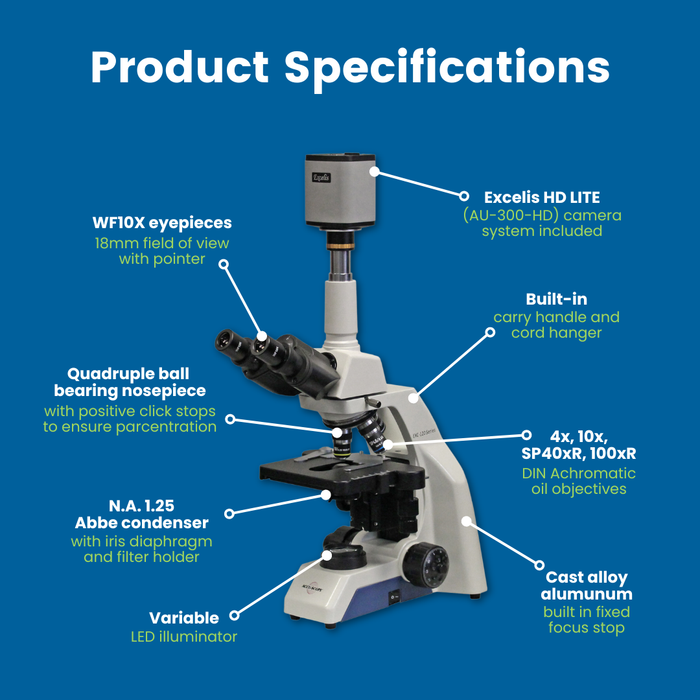

The microscope features a 360° rotatable trinocular viewing head and photo tube; 30° inclined paired WF10x/18.5mm eyepieces (one with pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, SP40xR and 100xR oil objectives; rackless mechanical stage with low position coaxial coarse and fine focusing controls; and Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder. Variable LED illuminator is UL Listed. Includes dust cover, power cord, immersion oil, and manual.
The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images for a wide variety of scientific, education and industrial applications. While the on-board software allows operation without a PC, you can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only.
Specifications
- Optical System: DIN Optical System, f=160mm, Anti-Mold
- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 48-75mm

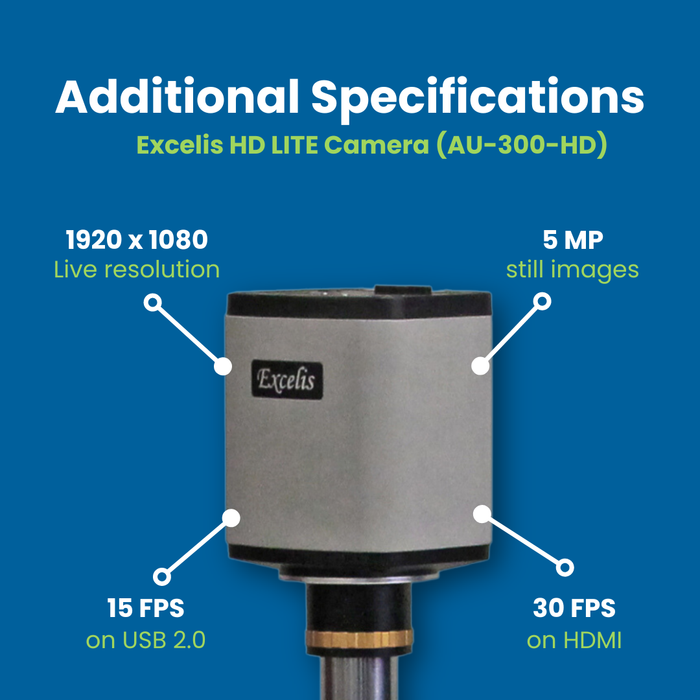

- Camera: Includes Excelis™ HD LITE (AU-300-HD) HD camera system and 0.5x c-mount adapter. Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels. Live Resolution: 1920 x 1080. Capture Resolution: 5MP (2592 x 1944). Frame Rate: HDMI: 30fps / USB2.0: 15fps. Image Capture: Hi Speed SD Card (8GB). Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC. Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function. Output Mode: HDMI or USB 2.0. Power Supply: DC 12V/1A. PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
- Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering and accept 19mm reticles
- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
- Objectives: Achromat objectives; 4x, 10x, Semi-Plan 40xR* and 100xR oil* (*spring-loaded)
- Stage: Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
- Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
- Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved
- Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears.
- Accessories: HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, CaptaVision PC imaging software, dust cover, immersion oil and instruction manual included.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold.
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

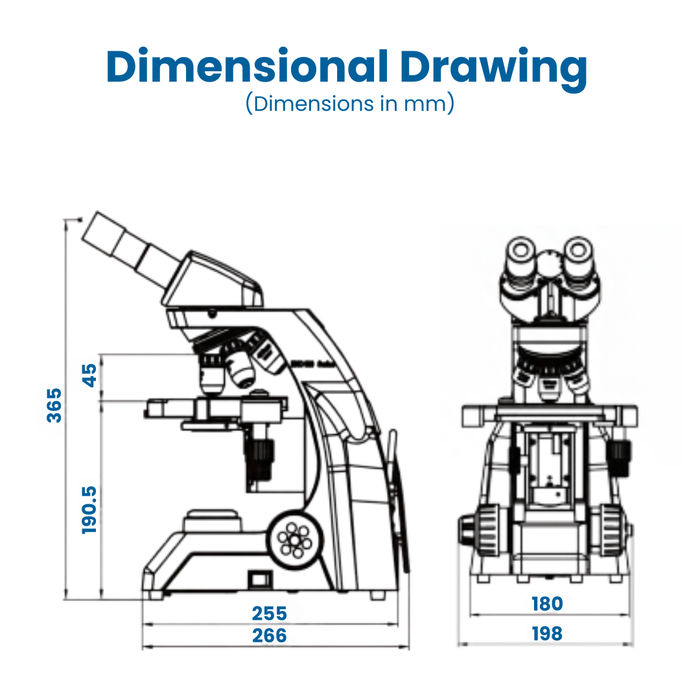

- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
