- MICROSCOPE WITH CAMERA SYSTEM || This advanced trinocular viewing head microscope comes with a high-fidelity color microscopy camera for true, real-time 1080p HD images on the integrated monitor
- INTEGRATED HD DISPLAY || Use the included 11.6" HD monitor to start viewing and capturing images right out of the box. It mounts directly to the Excelis HD camera body for convenient access and doesn't take up valuable bench space
- OPTICAL EXCELLENCE || High-quality DIN achromat optics in 4x, 10x, semi-plan 40xR*, and 100xR* (*spring-loaded) oil objectives provide superior, 40X-1000X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast. The rugged, die-cast aluminum frame with all brass gears and anti-mold optics is designed for years of heavy use
- CAPTURE & ANALYZE IMAGES & VIDEO || A color CMOS camera sensor captures high resolution, full-color still images at 5 megapixels and video at 15 frames per second to your PC or included SD card. Further analyze images on your PC with the included software featuring real-time intelligent flatfield correction; static and dynamic measurements and annotation; automatic counting; and much more
- ADVANCED MICROSCOPY || ACCU-SCOPE EXC-123-HD microscope is ideal for brightfield observation, phase contrast, and simple polarization microscopy

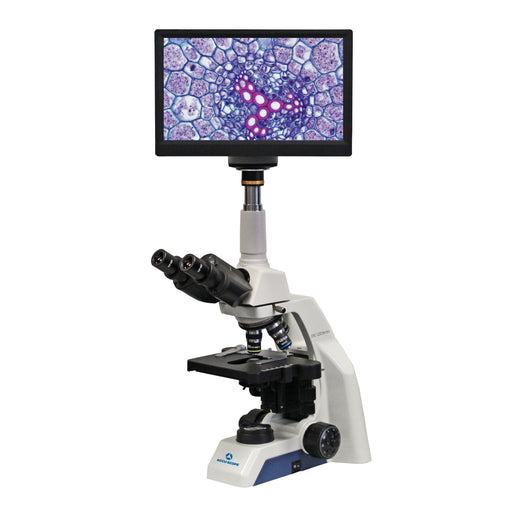

The Accu-Scope EXC-123-HDS is a complete microscopy system for advanced study. It consists of an advanced microscope with an HD Lite camera for delivering true, real-time 1080P HD images to an included 11.6" HD monitor.

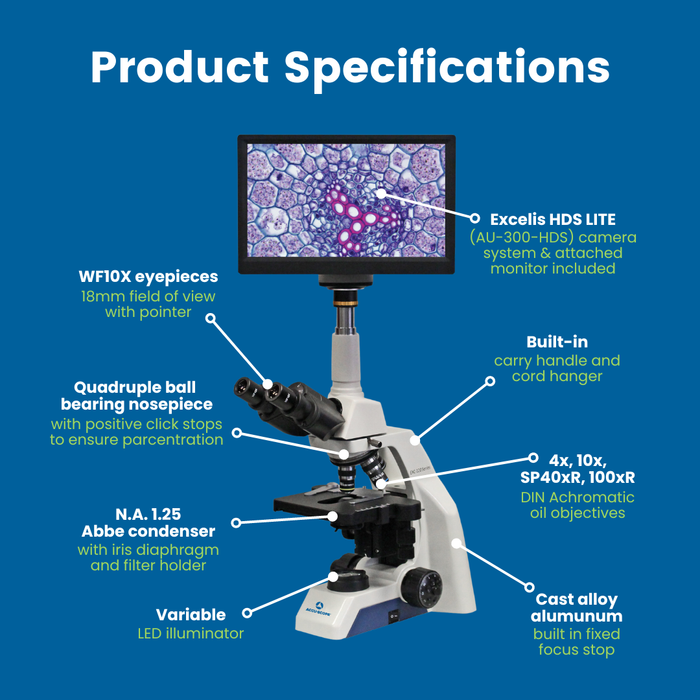

The microscope features a 360° rotatable trinocular viewing head and photo tube; 30° inclined paired WF10x/18.5mm eyepieces (one with pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, SP40xR and 100xR oil objectives; rackless mechanical stage with low position coaxial coarse and fine focusing controls; and Abbe condenser, N.A. 1.25 with iris diaphragm & filter holder. Variable LED illuminator is UL Listed. Includes dust cover, power cord, immersion oil, and manual.

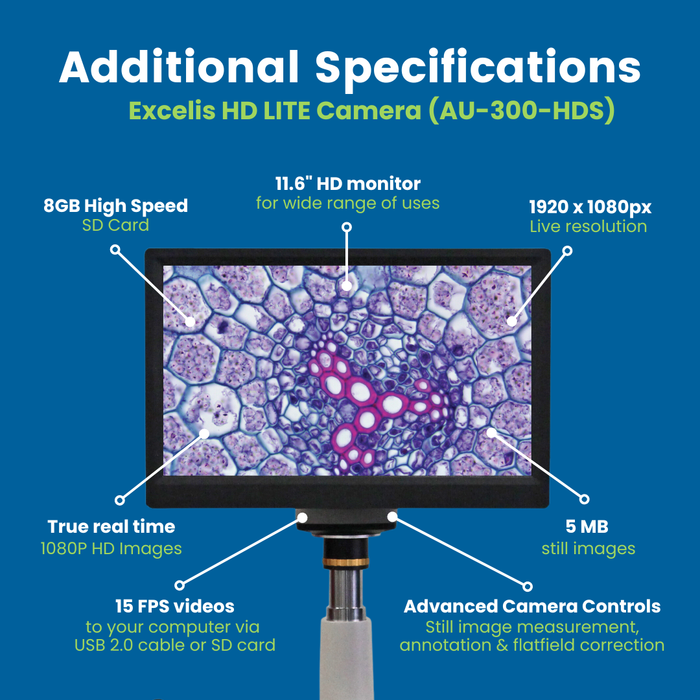

The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images to the attached 11.6" HD monitor for a wide variety of scientific, education and industrial applications. You can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only.
Specifications
- Optical System: DIN Optical System, f=160mm, Anti-Mold
- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 48-75mm
- Camera: Includes Excelis™ HD LITE (AU-300-HDS) HD camera system and 0.5x c-mount adapter. Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels. Live Resolution: 1920 x 1080. Capture Resolution: 5MP (2592 x 1944). Frame Rate: HDMI: 30fps / USB2.0: 15fps. Image Capture: Hi Speed SD Card (8GB). Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC. Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function. Output Mode: HDMI or USB 2.0. Power Supply: DC 12V/1A. PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
- Monitor: 11.6" HD. Mounts directly to the Excelis HD camera body
- Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering and accept 19mm reticles
- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
- Objectives: Achromat objectives; 4x, 10x, Semi-Plan 40xR* and 100xR oil* (*spring-loaded)
- Stage: Rackless Mechanical Stage; size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
- Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
- Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved
- Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears.
- Accessories: HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, CaptaVision PC imaging software, dust cover, immersion oil and instruction manual included.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold.
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

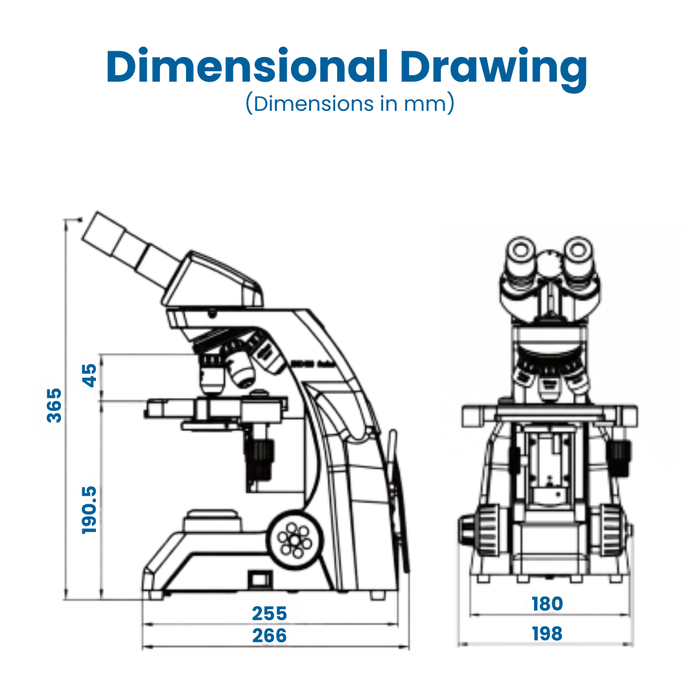

- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
