- MICROSCOPE WITH EYEPIECE CAMERA || This monocular microscope comes with an eyepiece camera for capturing high-resolution live images and video to your computer
- CRISP IMAGES AT 40X-400X || High-quality DIN optics in 4x, 10x, and 40xR* (*spring-loaded) objectives provide clear, 40X-400X magnification. Variable LED control delivers bright, even illumination for excellent image contrast
- CAPTURE IMAGES & VIDEO TO COMPUTER || A Sony color sensor on the eyepiece camera delivers high resolution, full-color images and video at 5.1 megapixels and 26 frames per second. Imaging software is included for camera controls, live viewing, image capture and measurement, annotation, and more
- STUDENT FRIENDLY DESIGN || An intuitive design ensures effortless operation, making it ideal for students of all levels. It comes fitted with three objectives and a standard stage with five aperture disc diaphragm. Separate coarse and fine focus adjustment controls allow for precise focusing of specimens, with tension adjustment on the coarse control for smooth and accurate adjustments. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides, ensuring durability and protecting your investment for long-lasting use
- CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need. Its compact size makes it easy to transport and store when not in use
Easy to use and student friendly, the Accu-Scope EXM-150-EP microscope features a monocular head with disc diaphragm LED. Highly portable with a built-in carry handle, cord wrap, and rechargeable LED illumination. Separate coarse and fine focus adjustment controls with tension adjustment on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides. Includes DIN achromat 4x, 10x and 40xR* objectives (* spring loaded).

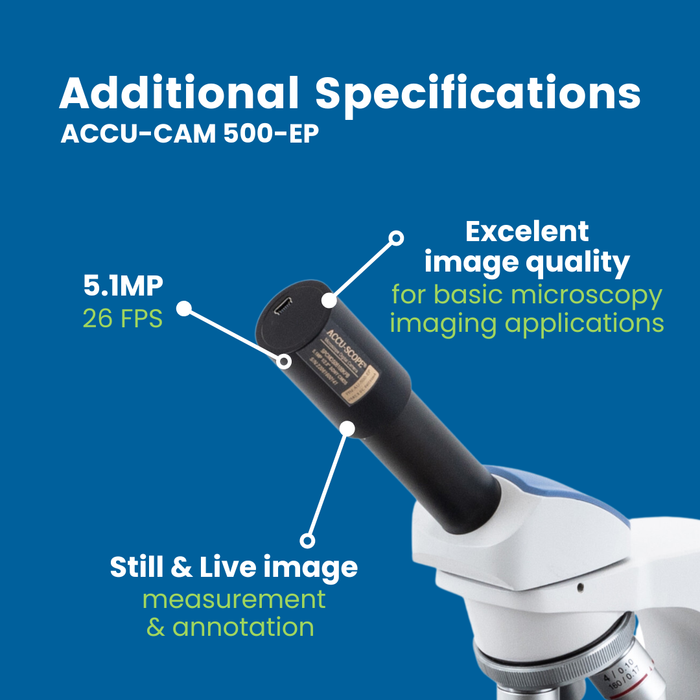

The included ACCU-CAM 500-EP Eyepiece Camera provides an excellent balance of image quality for basic microscopy imaging applications. A Sony CMOS color camera sensor delivers clear, crisp 5.1MP images to your PC or Mac computer via a USB 2.0 cable. ACCU-VIEW Imaging software included for camera controls, live viewing, image capture and measurement, annotation, and more.

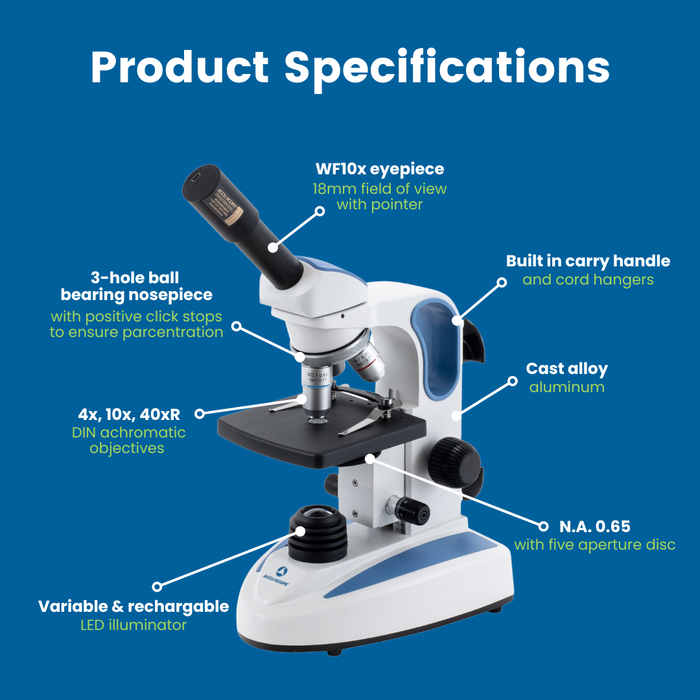

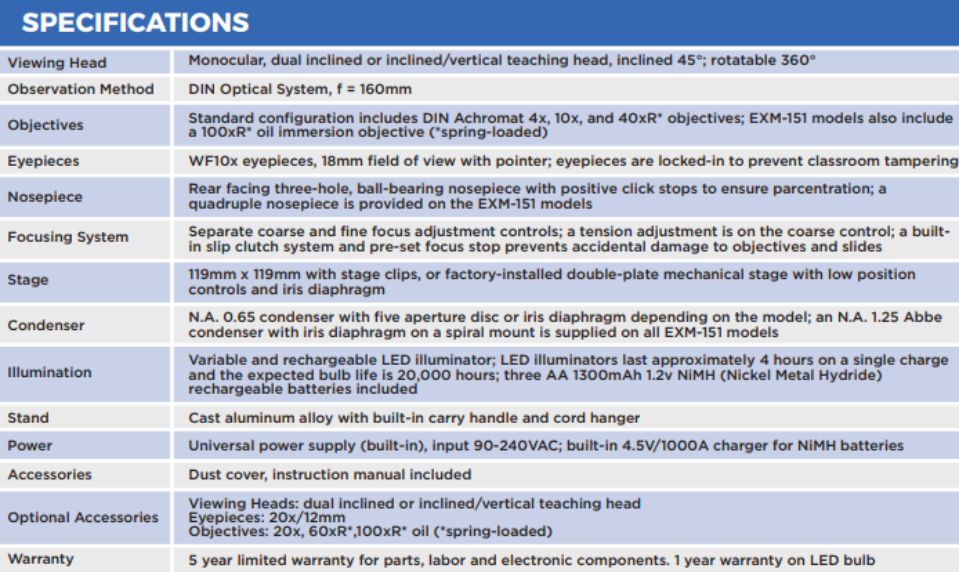

Specifications
- Optical System: DIN Optical System, f=160mm.
- Viewing Head: Monocular inclined head.
- Camera: ACCU-CAM 500 EP; Sensor: 1/2.8" Sony IMX335 color CMOS, 2.0µm pixels; Dynamic/Static Resolution: 2592 x 1944; Frame Rate: 26fps @ 2592x1944, 26fps @ 1280x960, 26fps @ 640x480; Image Capture: Image saved to PC via USB 2.0; Advanced Camera Controls: live/still image measurement and annotation, flat field correction, extended depth of focus (focus stacking), image stitching (requires mechanical stage); System Requirements: Windows 7 and up (32 and 64-bit), Mac OS 10.6 and up
- Accessories: USB 2.0 mini cable, ACCU-View software USB stick, dust cover and instruction manual included.
- Eyepieces: WF10x eyepiece, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering.
- Nosepiece: Rear facing three-hole, ball bearing nosepiece with positive click stops to ensure parcentration.
- Objectives: DIN achromat 4x, 10x and 40xR* objectives (*spring-loaded).
- Stage: Stage size 119mm X 119mm with stage clips.
- Condenser: N.A. 0.65 condenser with five aperture disc.
- Stand: Cast alloy aluminum with built-in carry handle and cord hangers.
- Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery.
- Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; CE; RoHS
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

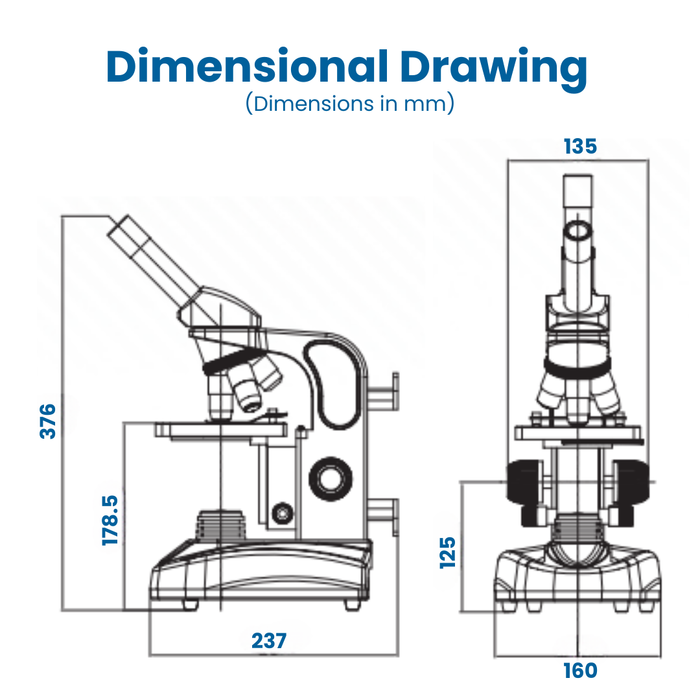

- Microscope Dimensions (LWH): 238mm x 184mm x 381mm
