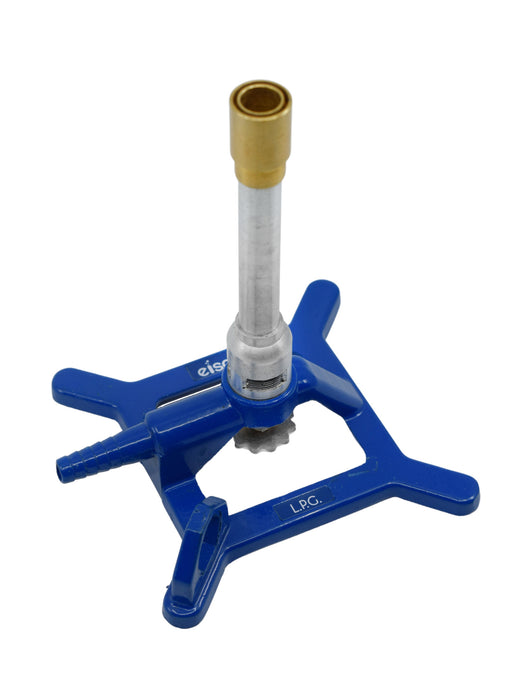

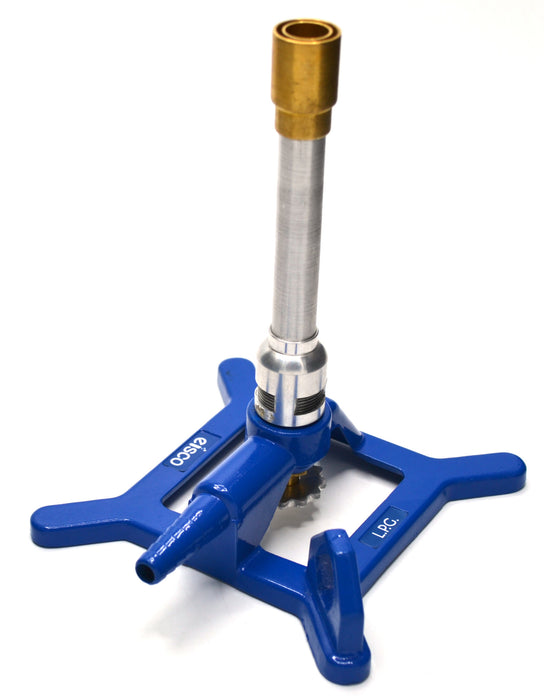

This premium Tirrill Bunsen burner is designed for finely controlled air and gas mixture. Provides a safe, continuous stream of flammable gas used for heating, sterilization and combustion. This burner is equipped with a brass flame stabilizer tip and two adjustable features - a threaded air flow adjustment to control the oxygen that is drawn into the tube, and a gas adjustment underneath the burner. Jetted for liquid propane. Liquid Propane Burners have a BTU range usually 2,000-3,200. Maximum Temperature is approximately 1550° C (2822° F).
This burner is equipped with casted ribbed fuel input tube with an 8mm outside diameter - Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Labs Neoprene Hose - available in 2 ft or 3 ft length options (CH0100A or CH0100B). Each end of the tubes has a flexible end that can fit a variable diameter of 0.28" to 0.42" (8-10mm) to accept a variety sizes on different burners.
Burner measures 6.25" tall, and base measures 4.5" wide and long.
