- VERSATILE ELECTRIC PAINT || Perfect for cold soldering, circuit painting, and fast prototyping. Create touch sensors and interactive projects with ease.
- NON-TOXIC & WATER-BASED || Safe, non-toxic, and water-soluble formula. Easily applies to paper, card, wood, and other non-hydrophobic surfaces.
- EASY APPLICATION || Convenient 10mL squeeze tube for precise application. Covers up to 0.5m and air-dries at room temperature in 5-15 minutes.
- WIDE COMPATIBILITY || Compatible with Touch Board, Pi Cap, Arduino, Raspberry Pi, MaKey MaKey, and more. Ideal for use with Bare Conductive hardware.
- HIGH PERFORMANCE || Electrically conductive black paint with a sheet resistance of 55Ω/sq at 50 microns. Suitable for screen printing and can be over-painted with water-based materials.

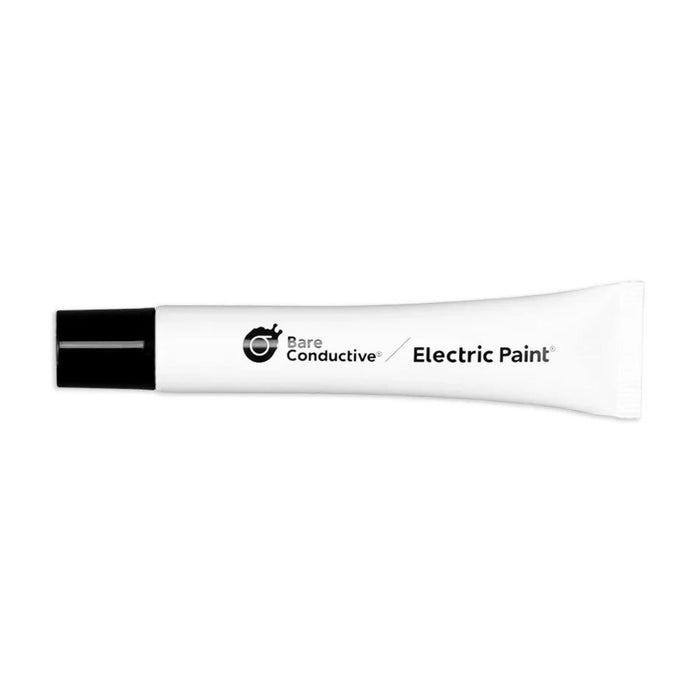

Bare Conductive Electric Paint 10mL Squeeze Tube

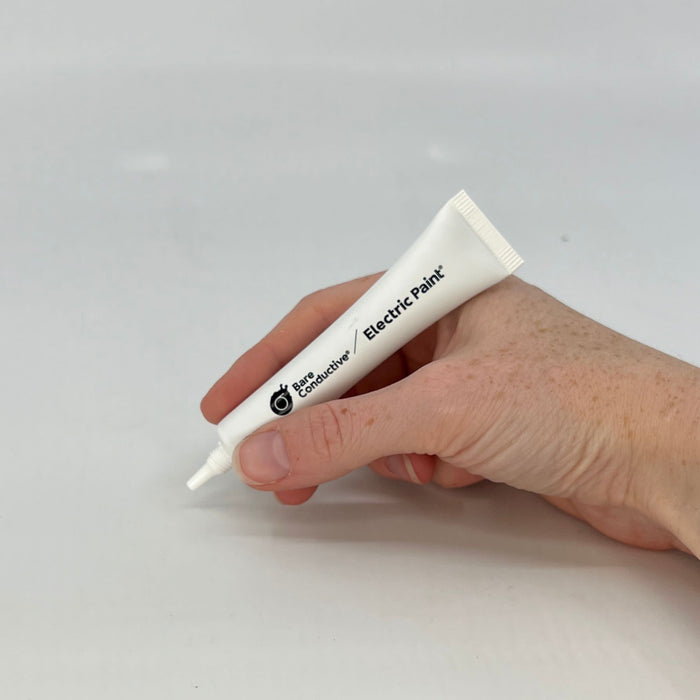

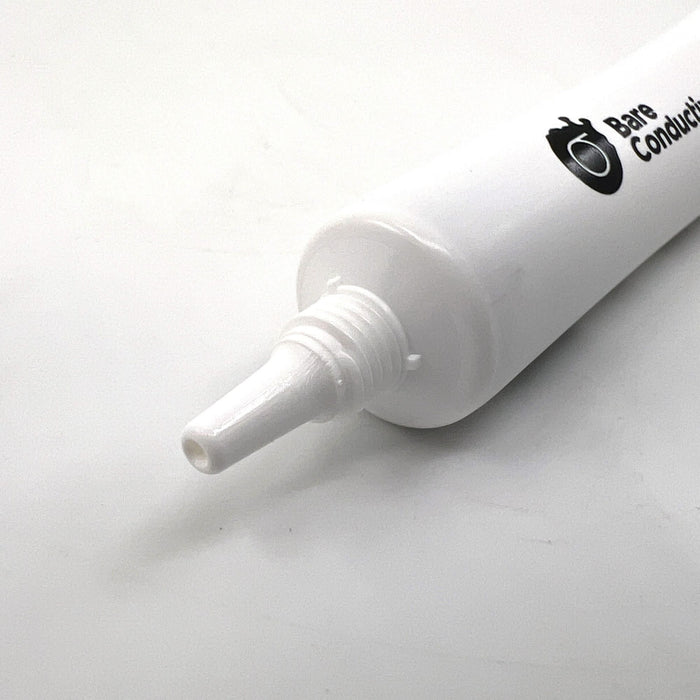

- Apply by squeezing the tube
- Great for cold soldering and painting circuits
- One tube can cover up to 0.5m

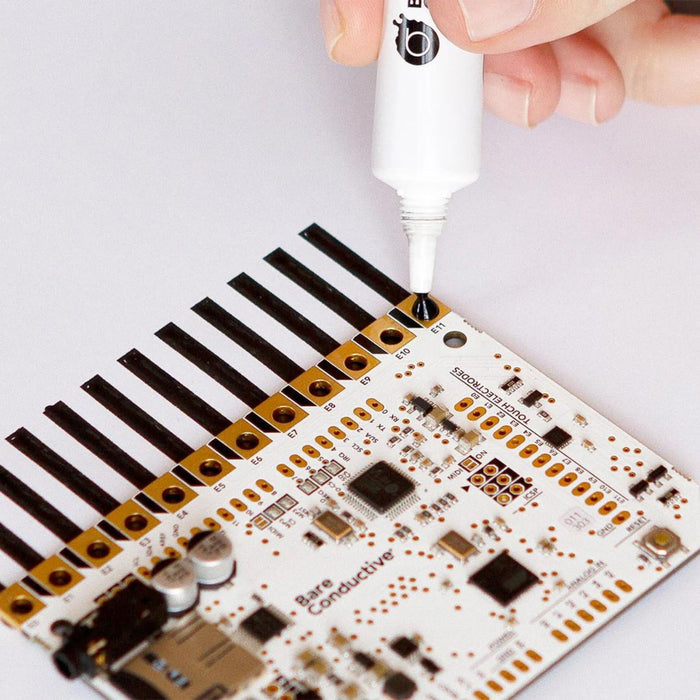

- Use with Bare Conductive hardware
Electric Paint is a non-toxic, water-based, water soluble, electrically conductive black paint. You can apply it on any surface that is non-hydrophobic, like paper, card or wood. It air-dries at room temperature, and is great for fast prototyping with printed electronics, fixing small repairs in circuits, or painting large interactive murals. It can be used in circuits as a painted resistor element, a capacitive electrode or can function as a conductor in designs that can tolerate high resistivity. It is intended for applications with circuits using low DC voltages at low currents.
With Electric Paint you can paint small electrical circuits or, combined with Bare Conductive hardware, create touch and proximity sensors. When combining Electric Paint and Bare Conductive hardware, you can touch the paint to trigger a sound, light, projection animation and more! Use Electric Paint to create interactive posters and interactive walls.
Electric Paint adheres to a wide variety of substrates and can be applied using screen printing equipment. Its major benefits include low cost, solubility in water, and good screen life. It is black in color and can be over-painted with any material compatible with a water-based paint.
Works with: Touch Board, Pi Cap, electrical components, prototyping materials, PCBs, microcontrollers, Arduino, Raspberry Pi, MaKey MaKey and e-textiles.
Color: Black
Density: 1.16 g/ml
Sheet resistance: 55Ω/sq at 50 micron film thickness
Screen printing: 43T – 90T polyester or stainless steel screen
Vehicle: Water-based
Drying temperature: Room temp for 5-15 minutes
Clean up: Warm water and soap
Shelf life: six months after opening
