Vernier Microscope Intermediate - EISCO

Sold out Build To Order
Original price $1,839.99
Current price $1,075.10
SKU PH0097

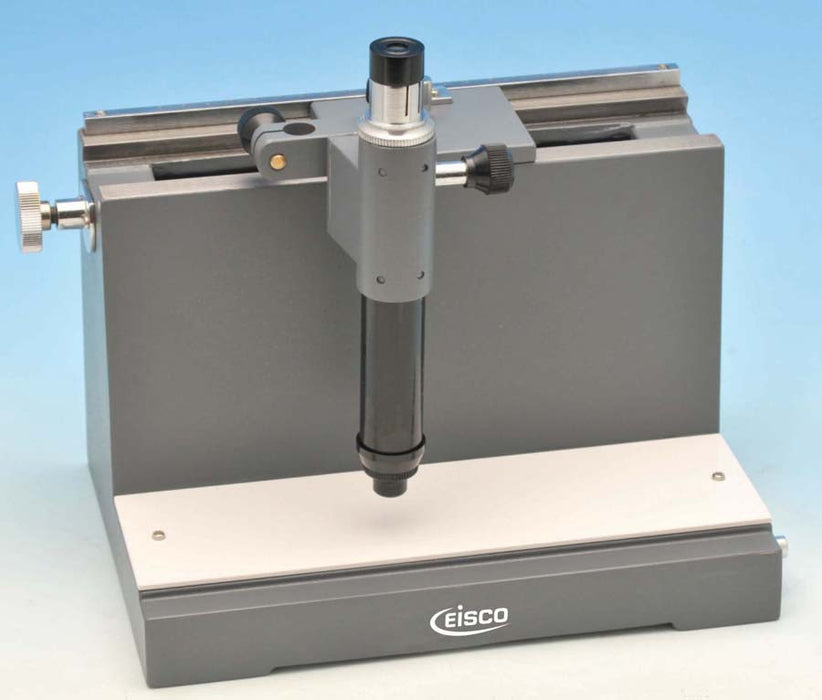

    Offering great accuracy and features to be used in a greater number of experiments. Scale 0 - 165 mm with a vernier reading to 0.01 mm eyepiece x 7 Ramsden, objective x 3, focal length 50 mm total magnification x 21. Supplied in wooden box. For schools and colleges. The carriage slides on a cast iron and carries the vernier, and a swing-over magnifier, for measurements accuracy to 0.01 mm. The carriage has two locations for the microscope, one on the carriage top face and the other on the side enabling the microscope to be mounted with its axis in any one of three positions with respect to travel. The base carries removable plate. The microscope is focused by a rack and pinion and is fitted with a glass crossing graticule and a draw tube. Scale 0 - 165 mm with a vernier reading to 0.01 mm eyepiece x 7 Ramsden, objective x 3, focal length 50 mm total magnification x 21. Supplied in wooden box.

    Please note, this item is "Build to Order" and will take up to 60 days to ship after placing your order.
