Premium Boyle's Law Demonstration Apparatus

SKU PH0150A
Original price $199.99 - Original price $199.99
Original price
$199.99
$199.99 - $199.99
Current price $199.99
  • VISUALIZE BOYLE'S LAW || Large apparatus for demonstrating the inverse relationship between the pressure and volume of a gas at constant temperatures
  • CLOSED SYSTEM || Colored fluid (not included) added to a reservoir will advance up or down the clear graduated column relative to the air pressure applied with a hand pump
  • QUANTITATIVE RESULTS || Pressure and volume are measured via a dual range gauge and graduated column mounted on the unit

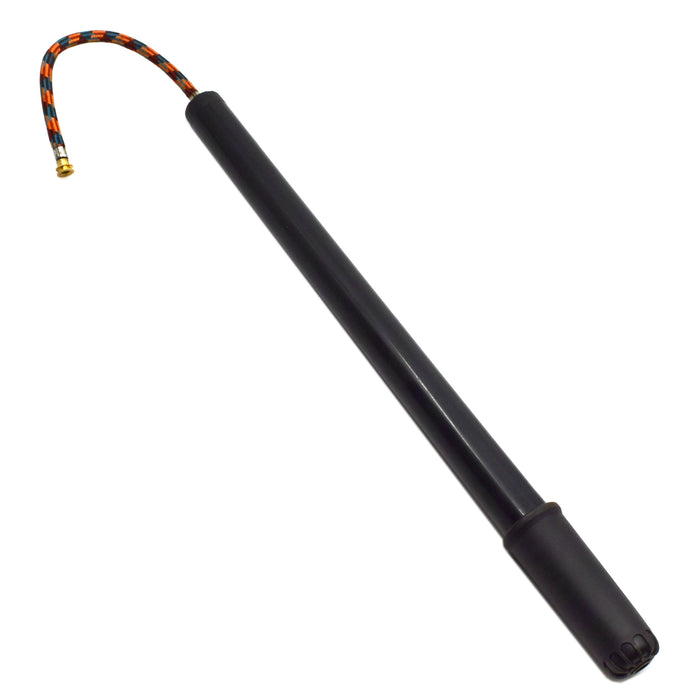

  • INCLUDED || Pressure gauge, column, and reservoir are mounted on a sturdy powder-coated metal base. Also includes a hand pump, wrench, funnel, and instructions
  • GREAT FOR PHYSICS & CHEMISTRY CLASSROOMS || Large size is ideal for classroom viewing, and useful for a variety of physics and chemistry experiments
In Stock - 18 Available
Expected to Ship Today
Original price $199.99 - Original price $199.99
Original price
$199.99
$199.99 - $199.99
Current price $199.99
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

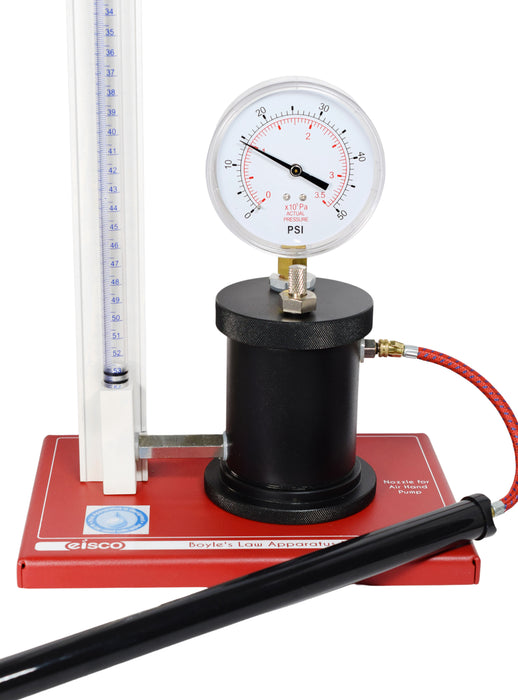

The Boyle's Law apparatus is an ideal instructional aid for studying the relationship between the pressure and volume of a gas held at a constant temperature. The sturdy construction of this closed system consists of a vertically standing graduated tube, pressure gauge, and fluid reservoir, all mounted on a powder-coated metal base. A colored fluid such as water or oil (not included) added to the reservoir will advance up or down the clear graduated column relative to the air pressure applied with the included hand pump. Pressure and volume are measured via a dual range gauge (0-50 p.s.i. and 0-3.5 Pa) and graduated column (marked 0-54 in 0.1 increments).

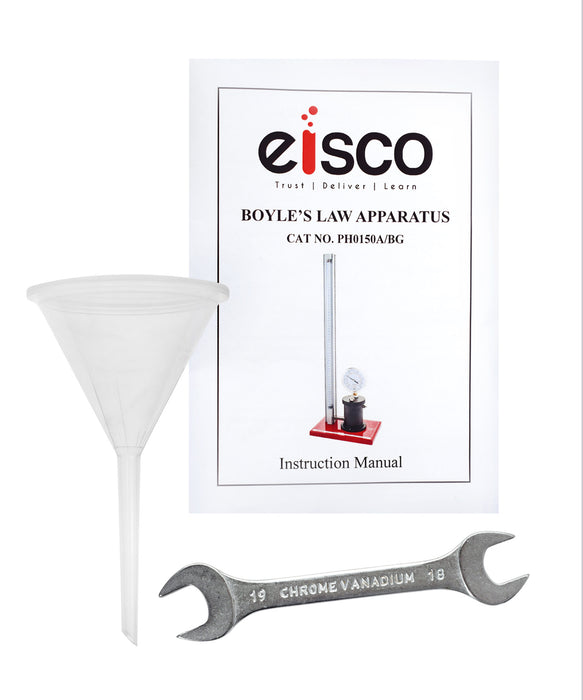

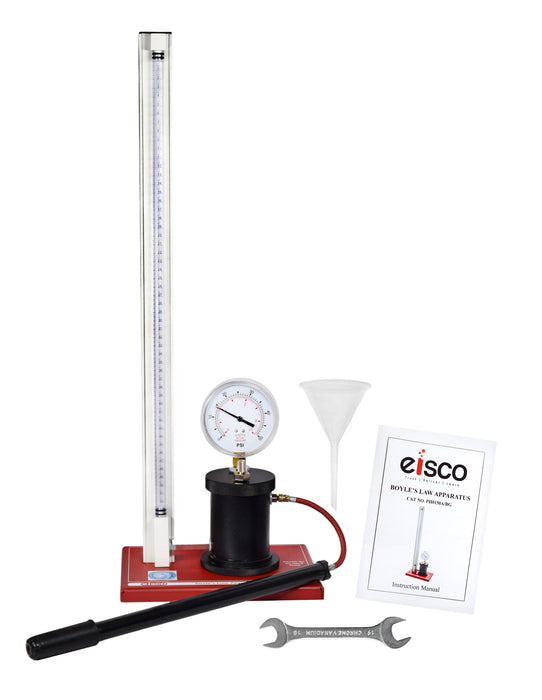

Includes Boyle's Law Apparatus, hand pump, 6.25" braided hose, wrench for tightening the reservoir, funnel, and instructions. Size of apparatus: 27"H with 9.8"x7" base.
