Demonstration Transformer

SKU PH0849
Build To Order
$869.30
Build To Order
Product will take up to 60 days to ship after placing your order
$869.30
By checking out, you agree to terms of service
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

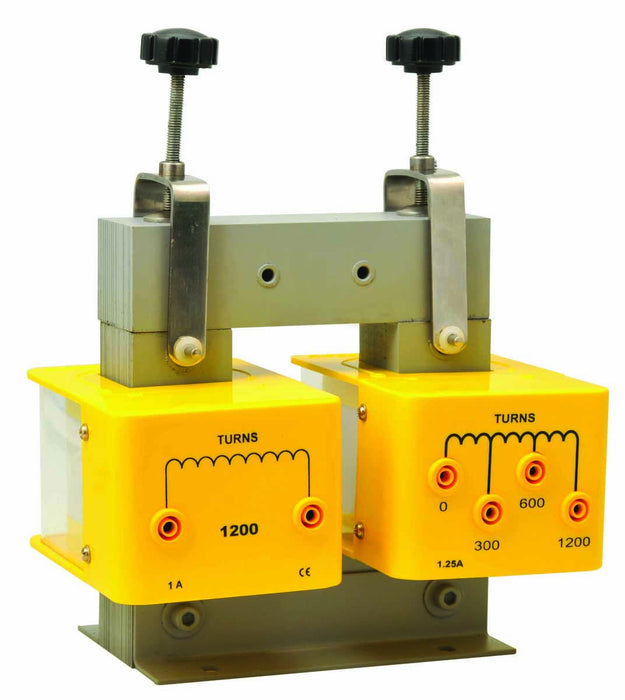

A large scale transformer, ideal for classroom. The coils are fitted with intermediary outputs providing many transformation ratios.

A large scale transformer, ideal for classroom. The coils are fitted with intermediary outputs providing many transformation ratios.Consisting of 1 magnetic circuit made up of highly permeable U-shaped metal sheeting which can be closed via two clamps with tightening screws.Section: 40 x 40 mm Length 150 mm Height 170 mmOne coil of 6000-turns, I max: 0.2 A. intermediary 2000-turns output.One coil of 600-turns, I max: 2.5 A. mainly used to create thetransformer primary. Provided with power supply cable.One coil of 1200-turns. I max: 1.25 A. fitted with intermediary 400 and 800-turns outputs.One coil of 72-turns, I max: 12 A. has intermediary 6, 30, 54 and66-turns outputs.

Please note, this item is "Build to Order" and will take up to 60 days to ship after placing your order.
