Rectifier Diode Demonstration on Base with 4mm terminals - Eisco Labs

SKU PH1029H
Original price $25.99
Current price $19.82
Low Stock - 3 Remaining
Expected to Ship Today
Original price $25.99
Current price $19.82
By checking out, you agree to terms of service
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

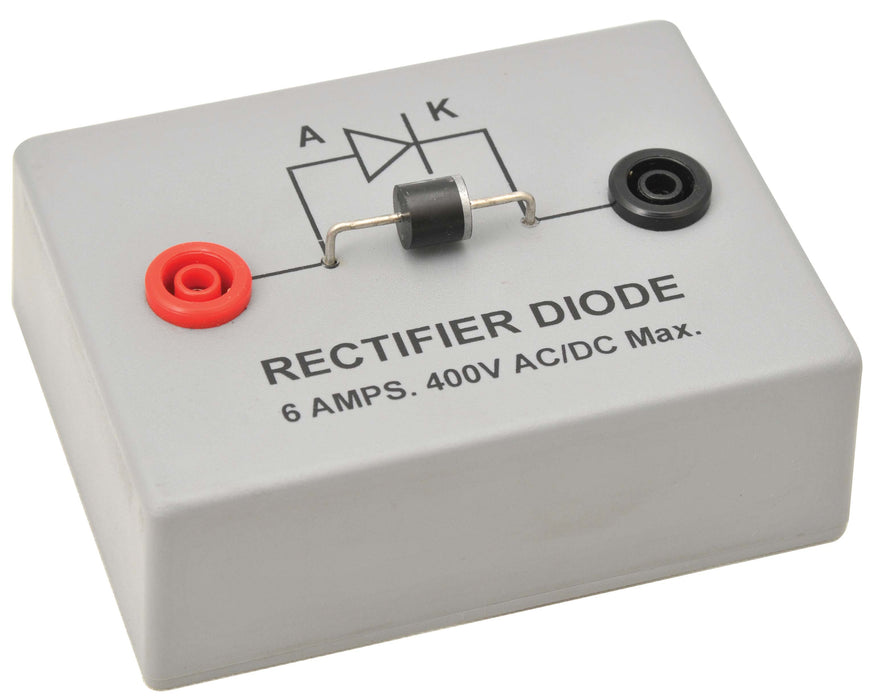

  • This unit demonstrates the concept of a rectifier diode allowing current flow in only one direct with a circuit. Max 6A 400V AC/DC. Can be used inline with other components of Eisco Series PH1029
  • Two 4 mm Terminals for banana plugs
  • Base Measures 3.75" (95.25 mm) x 2.75" (69.85 mm) x 1.38" (35 mm)
  • CE Certification
  • Power Source needed for operation. An economical Eisco power source is PH0971DCAC which is not included

This unit demonstrates the concept of a rectifier diode allowing current flow in only one direct with a circuit. Max 6A 400V AC/DC. Can be used inline with other components of Eisco Series PH1029. Two 4 mm Terminals for banana plugs. Base Measures 3.75" (95.25mm) x 2.75" (69.85 mm) x 1.38" (35 mm). CE Certification. Power Source needed for operation. An economical Eisco power source is PH0971DCAC which is not included
