Vernier Go Direct® Light & Color Sensor

IMPORTANT – FEDEX GROUND SHIPPING ONLY.
Product is NOT eligible for Free Shipping and other promotions.

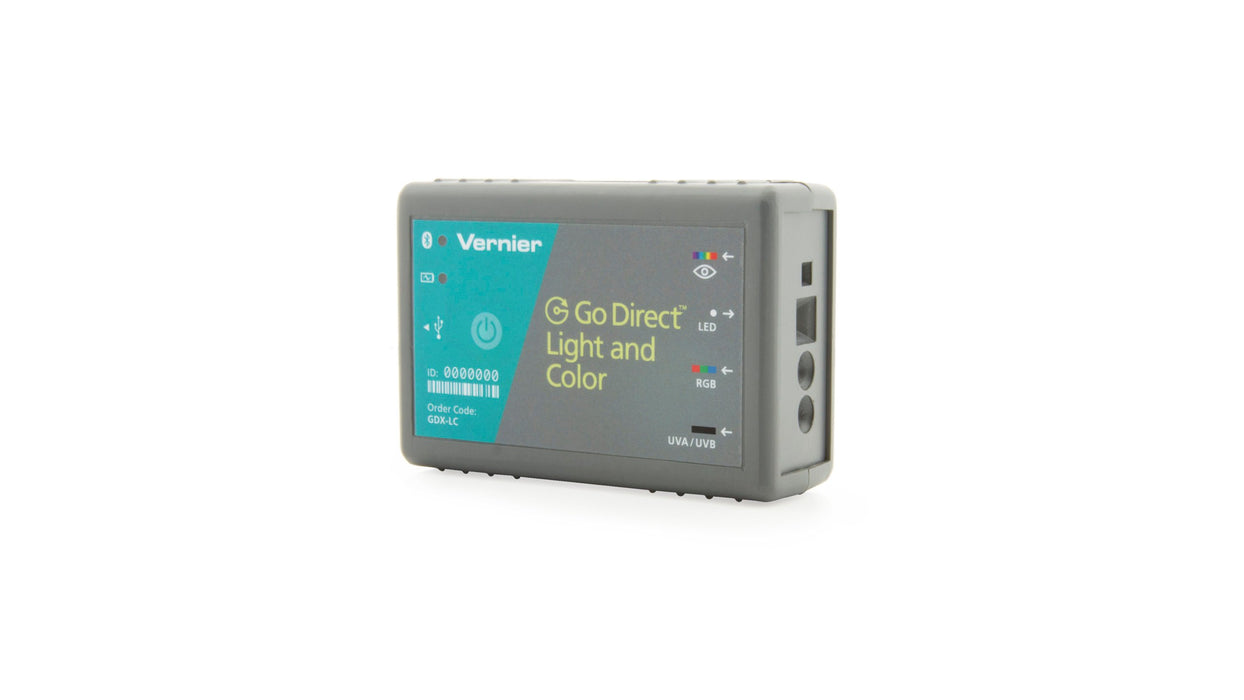

The Go Direct Light and Color Sensor combines the power of multiple sensors to measure light intensity in the visible range and UV portions of the electromagnetic spectrum.

1. Visible light sensor: The fast sampling rate for the visible light sensor (1000 Hz) allows you to observe the flicker of fluorescent lamps.
2. Red, green, blue (RGB) color sensor: Use the RGB sensor to determine the relative contribution of red, green, and blue light. A built-in white LED provides uniform illumination when the sensor is placed directly above a surface, reducing the effect of variable ambient light.
3. UV sensor: Ideal for experiments using sunlight and UV lamps, the UV sensor responds well to ultraviolet radiation in the UVA and UVB spectrum.

Wirelessly connect most Go Direct sensors to the Graphical Analysis Pro app in just seconds and collect, visualize, and interact with data in real time, from anywhere and on multiple devices

• Live data sharing during demonstrations. Great for in-person and remote learning
• Graph types, including bar graphs, histograms, and FFTs, plus the ability to plot categorical data
• Video-sensor data sync to replay, speed up, slow down, and pause recorded experiments at key moments in time
• Library of over 45 sample experiments ready to be analyzed by students as prep work, homework, or a makeup assignment
• User-defined curve fits, which allow advanced and more meaningful data analysis

Rechargeable Battery

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from the Vernier Graphical Analysis™ Pro app, as well as LabQuest®3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting - no interruptions or inconvenience to you or your students.

Wireless or Wired

Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using the Vernier Graphical Analysis™ Pro app - no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

Visible Light Sensor

• Wavelengths: 400–800 nm
• Range: 0 to 150,000 lux
• Maximum sampling rate: 1,000 samples/s

UV Sensor

• Responsive to UVA and UVB wavelengths
• Maximum sampling rate: 1 Hz

RGB Sensor

• Peak response: 615 nm peak (red); 525 nm peak (green); 465 nm peak (blue)
• Maximum sampling rate: 0.5 Hz

What's Included

• Go Direct Light and Color Sensor
• Micro USB Cable
