This sensor can be used to monitor and compare pulse rates under various exercise and rest conditions and to compare the €œnormal €ÂÂ' and "after exercise" pulse rates. Additionally, it can show how blood volume/flow rates in the finger or ear lobe vary with time.
The sensor has two modes of operation: measuring the BPM (Beats per Minute) of the heart rate or displaying the analog arbitrary value of the measured signal.
The electrodes are both plethysmograph-based and so record changes in blood volume/flow.

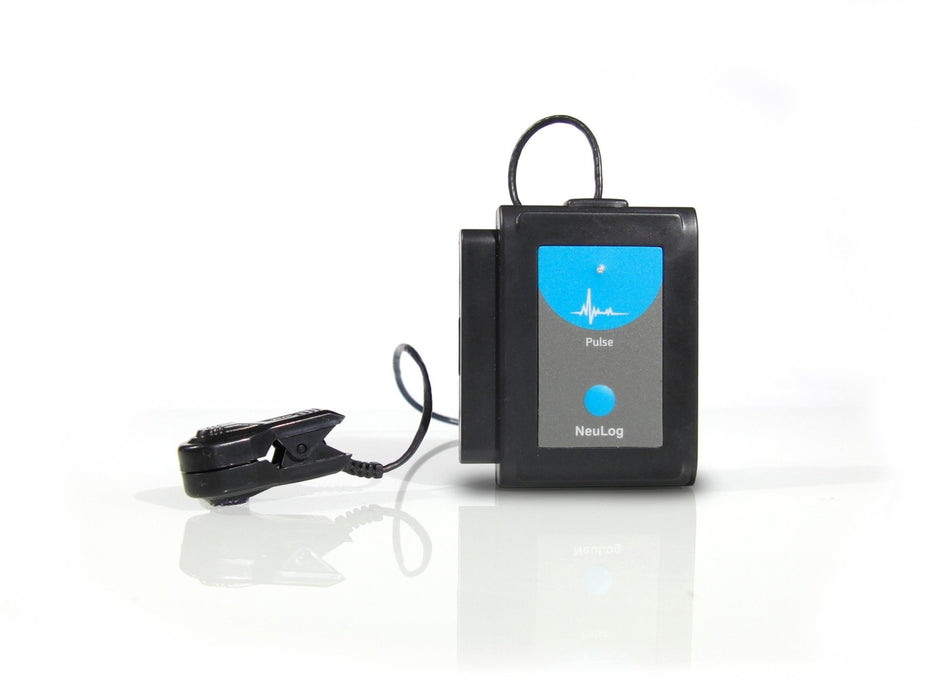

The sensors consist of an infrared LED transmitter and a matched infrared phototransistor receiver.
For best results, the sensor should be kept away from direct sunlight and high intensity lights.
*Requires connection hardware, sold separately.
Experiment Duration: 1 second to 31 days.
Operation Modes:
Range | ADC Resolution | Accuracy | Resolution | Max Sample Rate (S/sec):
30 to 240 BPM, 10 bit, 2 BPM, 2 BPM, 100
0 to 1024 analog values, 10 bit, 1, 1, 10,000
Video:
