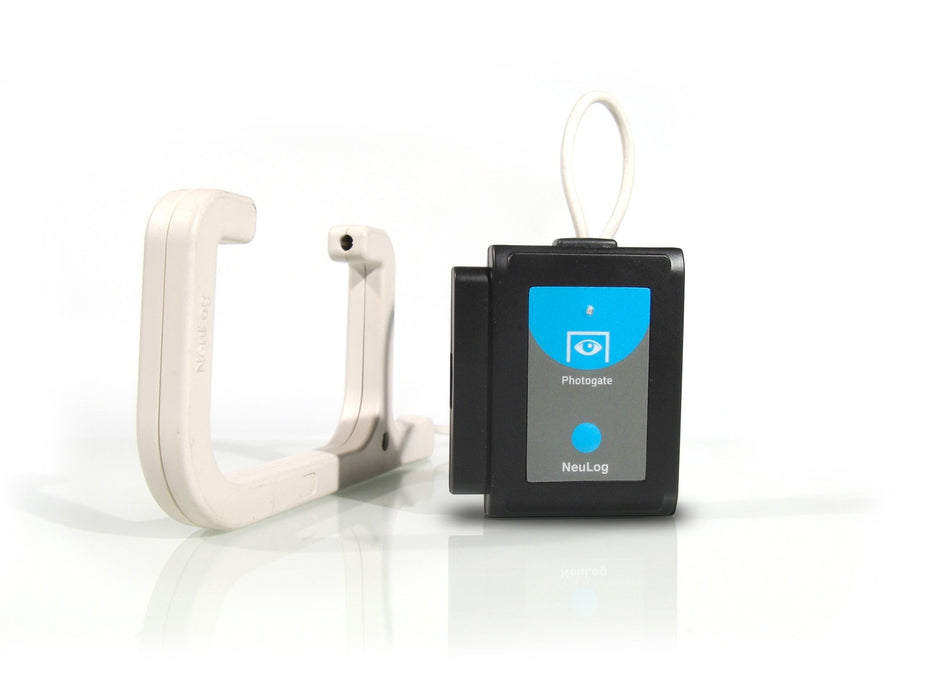

This sensor can be used to study various kinds of motion. With four modes of operation, time, velocity or acceleration can be measured with one or two photo gates and associated timing cards, as well as showing pictorially the status (digital 1 or 0) of the voltage output of the photo gate as timing cards pass through it.
The modes of operation are selected by clicking on the relevant picture.
The measured values can be displayed digitally or graphically.
The sensor has five modes of operation:
1. Time and Velocity mode
2. Acceleration with single photo-gate
3. Acceleration with two photo-gates
4. Velocity and Momentum with two photo-gates
5. Status graph mode
*Requires connection hardware, sold separately.
Operation Modes:
Range | ADC Resolution | Accuracy | Resolution | Max Sample Rate (S/sec):
Single timing card with one photo gate, 16 bit digital, 100 μs, 100 μs, 10,000
Double timing card with one photo gate, 16 bit digital, 100 μs, 100 μs, 10,000
Single timing card with two photo gates, 16 bit digital, 100 μs, 100 μs, 10,000
Digital status one photo gate, 16 bit digital, 100 μs, 100 μs, 10,000
