- STEREO MICROSCOPE WITH CAMERA SYSTEM || This Zoom Stereomicroscope comes with a high-fidelity color microscopy camera for delivering true, real-time 1080p HD images on an integrated monitor
- INTEGRATED HD DISPLAY || Use the attached 11.6" HD monitor to start viewing and capturing images right out of the box
- CRISP IMAGES AT 8X-35X|| The Stereo Microscope is designed for years of dependable binocular observation. It comes equipped with a Greenough optical system; 8-35X zoom magnification; and variable LED incident and transmitted illumination to deliver sharp, high resolution, 3-dimensional views of your samples
- CAPTURE & ANALYZE IMAGES & VIDEO || A color CMOS camera sensor captures high resolution, full-color still images at 5 megapixels and video at 15 frames per second to your PC or included SD card. Further analyze images on your PC with the included software featuring real-time intelligent flatfield correction; static and dynamic measurements and annotation; automatic counting; and much more
- GREAT FOR SCHOOL, GEM LABS, RESEARCH, & MANUFACTURING || Designed for a variety of disciplines including life science and dissection, assembly and manufacturing, gemology and jewelry making, and more. A generous 95mm working distance between the lens shield and stage supports a wide range of sample sizes

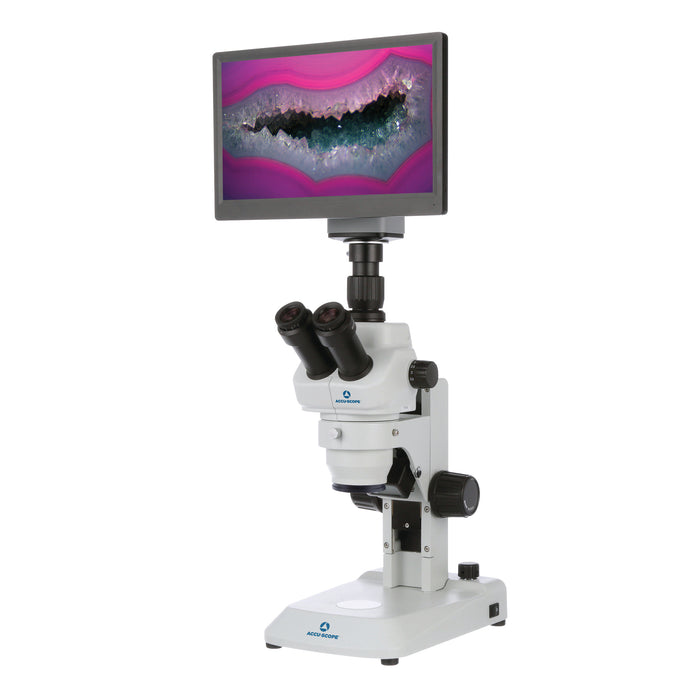

The Accu-Scope 3079-HDS is a complete microscopy system consisting of a stereo microscope with an HD-Lite camera for delivering true, real-time 1080P HD images to the included 11.6" HD monitor. It is ideal for use in disciplines such as education, research, assembly and manufacturing, gemology and jewelry making, sample preparation and dissection.
The Zoom Stereo Microscope is easy to use and student friendly, designed for comfort and dependable 3-dimensional views of your sample. It is equipped with a binocular viewing head with interpupillary adjustment and photo tube; 45° inclined WF10x focusable eyepieces; a 95mm working distance between the lens shield and stage; and a Greenough-design optical system and variable LED illumination.
The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images to the attached 11.6" HD monitor for a wide variety of scientific, education and industrial applications. You can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only.

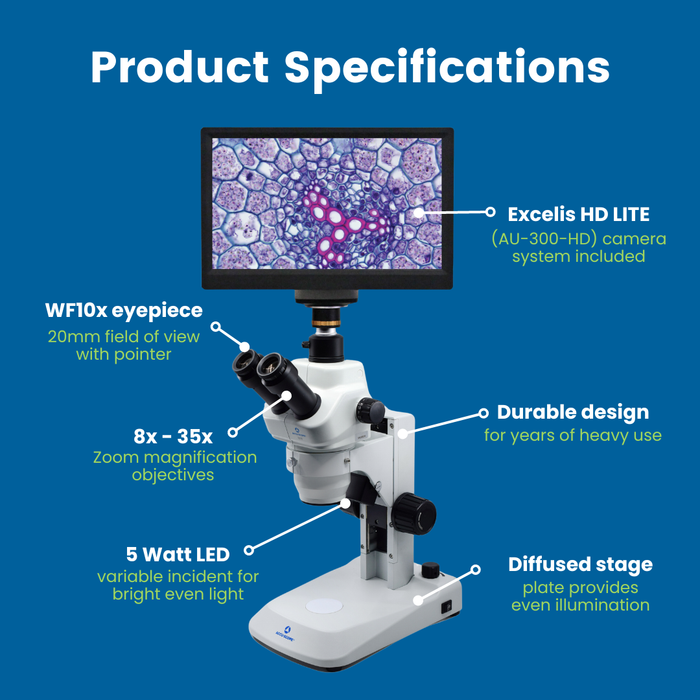

Specifications
- Optical System: Greenough
- Viewing Head: Trinocular viewing head, inclined 45°. Interpupillary distance adjustment 54-75mm, diopter adjustment +/- 5

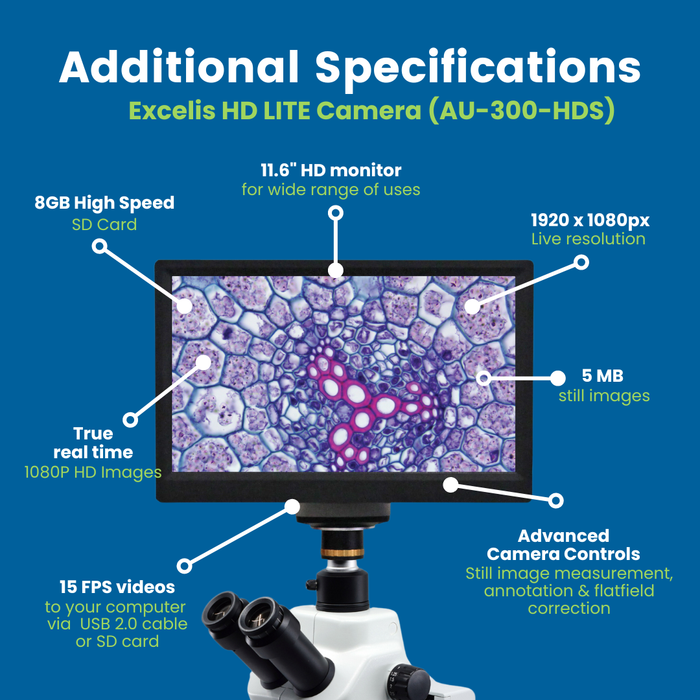

- Camera: Includes Excelis™ HD LITE (AU-300-HDS) HD camera system and 0.5x c-mount adapter. Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels. Live Resolution: 1920 x 1080. Capture Resolution: 5MP (2592 x 1944). Frame Rate: HDMI: 30fps / USB2.0: 15fps. Image Capture: Hi Speed SD Card (8GB). Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC. Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function. Output Mode: HDMI or USB 2.0. PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
- Monitor: 11.6" HD. Mounts directly to the Excelis HD camera body
- Eyepieces: WF10x focusable eyepieces, 20mm field of view. Eyeguards included
- Focusing System: Dual focusing knobs with adjustable tension control
- Stage: Diffused stage plate in the base provides even illumination
- Stand: Variable LED incident and transmitted illumination, coarse focusing stand, 100mm focusing travel, 5w variable LED transmitted and reflected illuminators, ø76mm pod holder
- Accessories: HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, CaptaVision PC imaging software, universal power supply (110v-240v), dust cover, and instruction manual included
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
- Microscope Dimensions (LWH): 175mm x 275mm x 300mm
