Stereo Microscope 3079-LED - Trinocular Head, 8-35X Zoom Magnification

• TRINOCULAR HEAD || Fitted with two 10X widefield binocular eyepieces and one 10X vertical photo port for simultaneous viewing with an attached microscope camera (not included)
• CRISP IMAGES OVER 8X-35X ZOOM RANGE || The Stereo Microscope is designed for years of observation. It comes equipped with a Greenough optical system and variable LED incident and transmitted illumination to deliver sharp, high resolution, 3-dimensional views of your samples. The zoom feature allows for smoothly increasing or decreasing magnification between 8X and 35X to reach the optimal setting for your particular sample
• OPTICAL EXCELLENCE || Manufactured using the latest optical coatings, the 3079-LED Zoom Stereomicroscope produces superb image resolution, outstanding depth of field and unsurpassed image clarity
• DURABLE CONSTRUCTION || Designed for years of heavy use, the 3079-LED Zoom Stereo Microscope is ruggedly built, precision engineered, and is airtight, allowing for use in any production or industrial environment
• GREAT FOR SCHOOL, GEM LABS, RESEARCH, & MANUFACTURING || Designed for a variety of disciplines including life science and dissection, assembly and manufacturing, gemology and jewelry making, and more. A generous 95mm working distance between the lens shield and stage supports a wide range of sample sizes

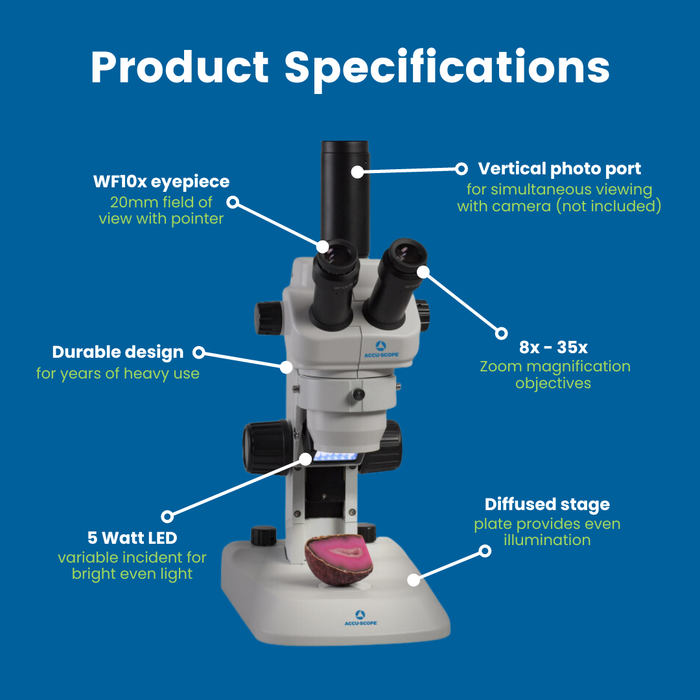

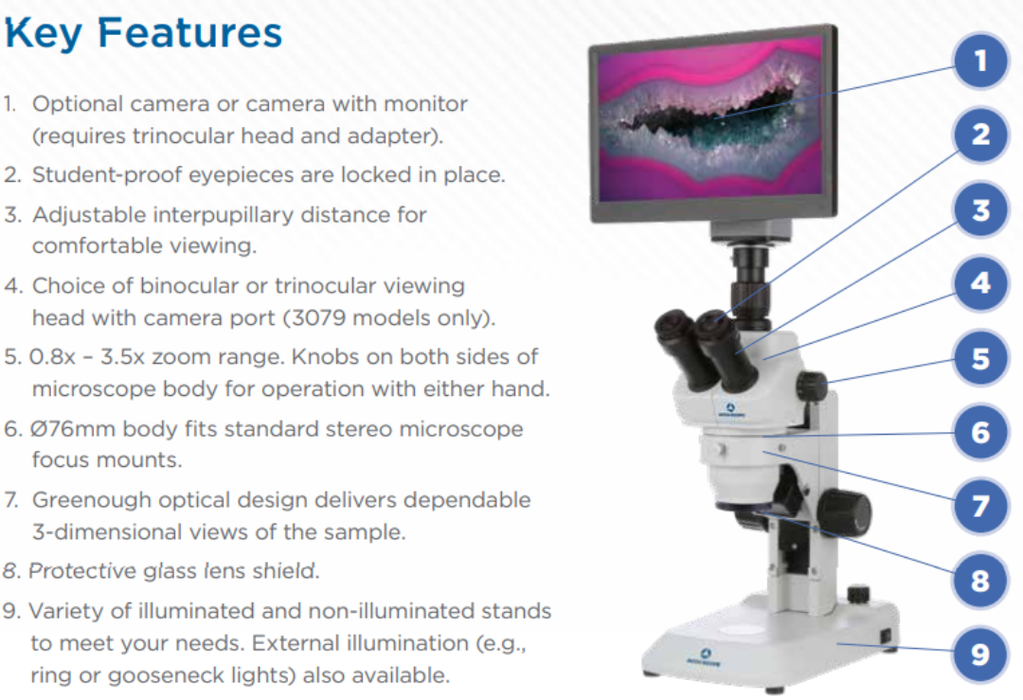

Easy to use and student friendly, the 3079-LED Trinocular Zoom Stereomicroscope delivers sharp, high resolution, 3-dimensional views of your samples. It Features inclined 45° WF10x/20mm focusable eyepieces with eyeguards, an 0.8X to 3.5X zoom range (8X -35X with 10X eyepieces), with 1.0x glass lens shield dovetail focusing stand with coarse focus adjustment & stage plate. Variable 5 watt LED incident and transmitted illuminators provide bright, even light. The trinocular viewing head includes a camera port (fixed 50:50 split of light to camera and eyepieces) for imaging, instruction or documentation (requires camera and adapter, not included). Includes a 100-240V universal power supply, dust cover and manual.

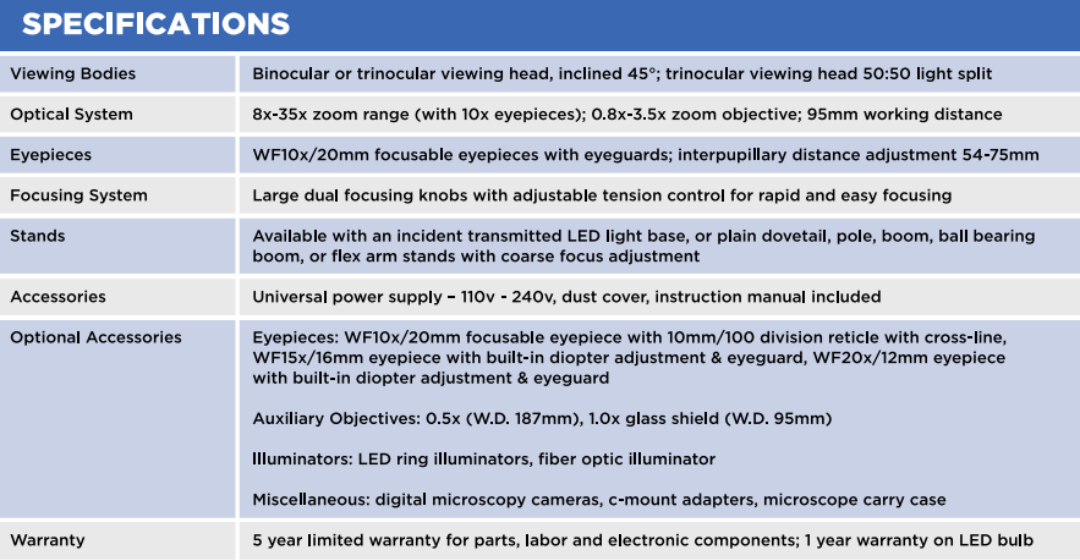

Specifications

- Optical System: Greenough

- Viewing Head: Trinocular viewing head, inclined 45°. Interpupillary distance adjustment 54-75mm, diopter adjustment +/- 5

- Eyepieces: WF10x focusable eyepieces, 20mm field of view. Eyeguards included

- Objectives: Zoom magnification objective 0.8X – 3.5X (8X – 35X with 10X eyepieces). 1X glass shield included.

- Focusing System: Dual focusing knobs with adjustable tension control

- Stage: Diffused stage plate in the base provides even illumination

- Stand: Variable LED incident and transmitted illumination, coarse focusing stand, 100mm focusing travel, 5W variable LED transmitted and reflected illuminators, ø76mm pod holder

- Accessories: Universal power supply (110V-240V), dust cover, and instruction manual included

- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved

- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

- Microscope Dimensions (LWH): 175mm x 275mm x 300mm
