Microscope Camera, Excelis HD Light - 1080p HD Resolution - 5 MP Image & 15 FPS Video Capture - HDMI/USB 2.0 Outputs

• 1080P HD VIEWING || High-fidelity color microscopy camera delivers true, real-time 1080p HD images from your microscope to a TV, monitor, or PC via the included HDMI and USB 2.0 cables
• CAPTURE STILL IMAGES & VIDEO || A color CMOS camera sensor captures high resolution, full-color still images at 5 megapixels and video at 15 frames per second to your PC or included SD card
• IMAGE PROCESSING SOFTWARE || Further analyze images on your PC with the included software featuring real-time intelligent flatfield correction; static and dynamic measurements and annotation; automatic counting; and much more
• SD CARD || Save images and video to the included 8GB high-speed SD card for transfer to other devices
• GREAT FOR PROFESSIONAL LIFE SCIENCE & INDUSTRIAL APPLICATION || Featuring advanced controls; powerful brightfield image processing tools such as real-time fluorescence image synthesis, stitching, and depth-of-field fusion; and report generation/export - Perfect for pathology, cell biology, microbiology, and material inspection and analysis

The Excelis HD Lite high-fidelity Color Microscopy Camera delivers true, real-time 1080P HD images for a wide variety of scientific, education and industrial applications. While the on-board software allows operation without a PC, you can also capture 5 MB still images and video at 15 fps to your computer via USB 2.0 cable or SD card for advanced image processing using the imaging software for Windows PCs only. Includes camera, HDMI cable, USB 2.0 cable, 12V power adapter, 8GB SD card, USB mouse, and CaptaVision PC imaging software.

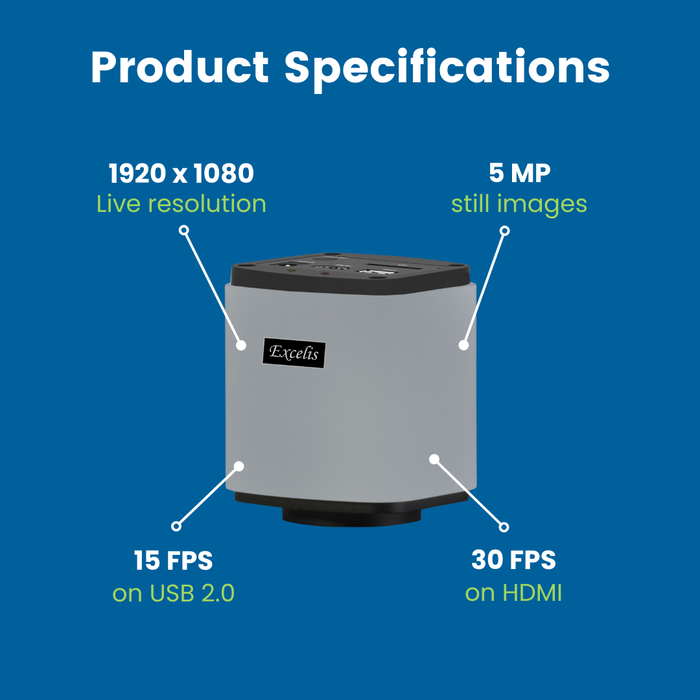

Specifications

- Sensor: 1/2.5" Aptina MT9P031 color CMOS, 2.2µm pixels
- Live Resolution: 1920 x 1080
- Capture Resolution: 5MP (2592 x 1944)
- Frame Rate: HDMI: 30fps / USB2.0: 15fps
- Image Capture: Hi Speed SD Card (8GB); (accepts Class 10 SD card, 32GB maximum)
- Video Capture: HDMI: 1080p, 15fps to SD Card / USB2.0: 1080p, 15fps to PC
- Exposure Time: 0.001 sec – 10.0 sec
- White Balance: Automatic
- Other Settings: Gain, Gamma, Saturation, Brightness, Sharpness
- Built-in Software (stand-alone operation): Cloud 1.0 (on-screen live image measurement is not available with Excelis HD Lite cameras)
- PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
- Advanced Camera Controls: Still image measurement and annotation, flatfield correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
- Image Types: JPG and TIF
- Output Mode: HDMI or USB 2.0
- System Requirements: Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
- Power Supply: DC 12V/1A
- Lens Mount: C-Mount lens adapter, 0.5x recommended
- Camera Dimensions (LWH): 79.1mm x 33mm x 42.5mm
