Digital Microscope with Camera, EXC-103-EC50 - Trinocular Head, 40-1000X Magnification, Cordless LED Illumination - 5 MP Image & 29 FPS Video Capture - USB 2.0 Output

• MICROSCOPE WITH CAMERA SYSTEM || This advanced trinocular viewing head microscope comes with a color microscopy camera for delivering high-resolution live images and video from your microscope's stage to your computer via USB 2.0 connection
• GREAT IMAGES || Ideally suited for the classroom environment, the EXC-103-EC50 Microscope provides clear images during observation, with front lens surfaces that are flush and easy to clean. The achromat 4x, 10x, 40xR*, and 100xR* oil immersion DIN objectives provide 40X-1000X magnification. Variable LED control with Abbe condenser and iris diaphragm delivers bright, even illumination for excellent image contrast
• ERGONOMIC || Features interpupillary adjustment on the binocular viewing objectives and low positioned coaxial focusing mechanism for complete ergonomic comfort to users during extended viewing periods
• CORDLESS & PORTABLE || With rechargeable LED illumination, built-in carry handle, and cord wrap, this microscope is highly portable, allowing you to take it wherever you need
• DURABLE CONSTRUCTION || The rugged, die-cast aluminum frame with all metal gears and anti-mold optics is designed for years of use

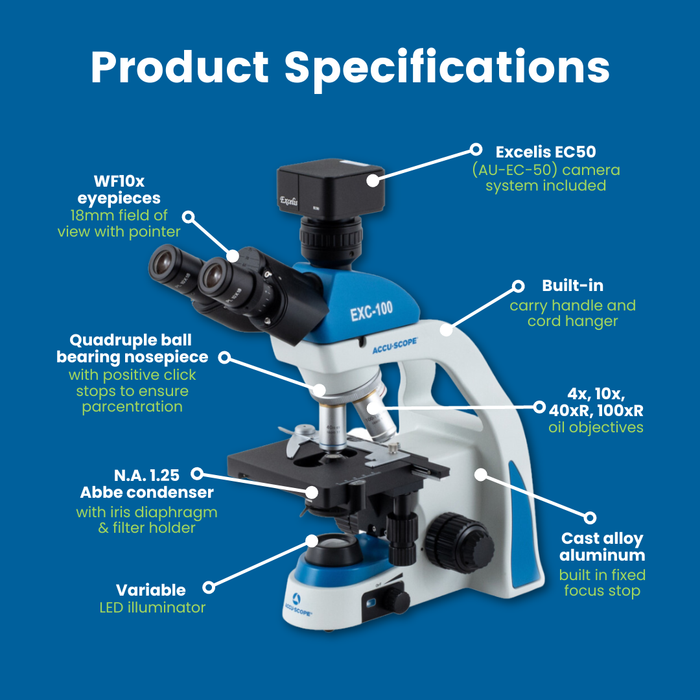

The Accu-Scope EXC-103-EC50 features a 360° rotatable trinocular viewing head; 30° inclined paired PL10x/18mm eyepieces (paired - one w/pointer); diopter adjustment; and reversed quadruple nosepiece. It is also equipped with DIN achromat 4x, 10x, 40xR and 100xR oil objectives; mechanical stage with low position coaxial coarse and fine focusing controls with adjustable tension control; and Abbe condenser on spiral mount, N.A. 1.25 with iris diaphragm & filter holder. The variable LED illuminator is powered by power cord or rechargeable battery for portability. A built-in fixed focus stop allows for rapid focusing while protecting specimens. Includes dust cover, power cord, and manual.

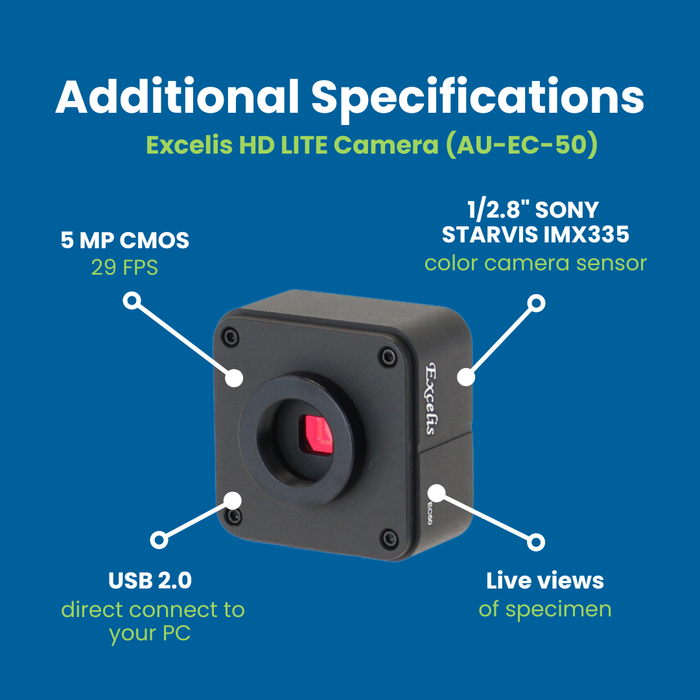

The Included Excelis EC50 Color Microscopy Camera provides excellent image quality for routine microscopy imaging applications. A Sony STARVIS CMOS sensor is at the core of the EC50 and features a rolling shutter for high resolution and great color at high frame rates. Data transfer across a USB 2.0 cable ensures stunning live views of the specimen. CaptaVision+ software brings excellent camera controls and new dimensions to imaging including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more.

Specifications

- Optical System: DIN Optical System, f=160mm, Anti-Mold

- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm.

- Camera: Sensor: 1/2.8" Sony STARVIS IMX335 color CMOS, 2.0µm pixels. Dynamic/Static Resolution: 2560x1920. Frame Rate: 29fps @ full frame (2560x1920)). Exposure Time: 1µs – 1s941msec. White Balance: Automatic and Manual. PC Imaging Software: CaptaVision+ Imaging Software (for PC/Windows and Mac OS). Advanced Camera Controls: Live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge

- Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering.

- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration.

- Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).

- Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale.

- Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder.

- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger.

- Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable.

- Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears.

- Power: Power adapter delivers 5V/1A to microscope from 100V-240V input

- Accessories: Dust cover and instruction manual included.

- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE.

- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

- Microscope Dimensions (LWH): 255mm x 198mm x 368mm
