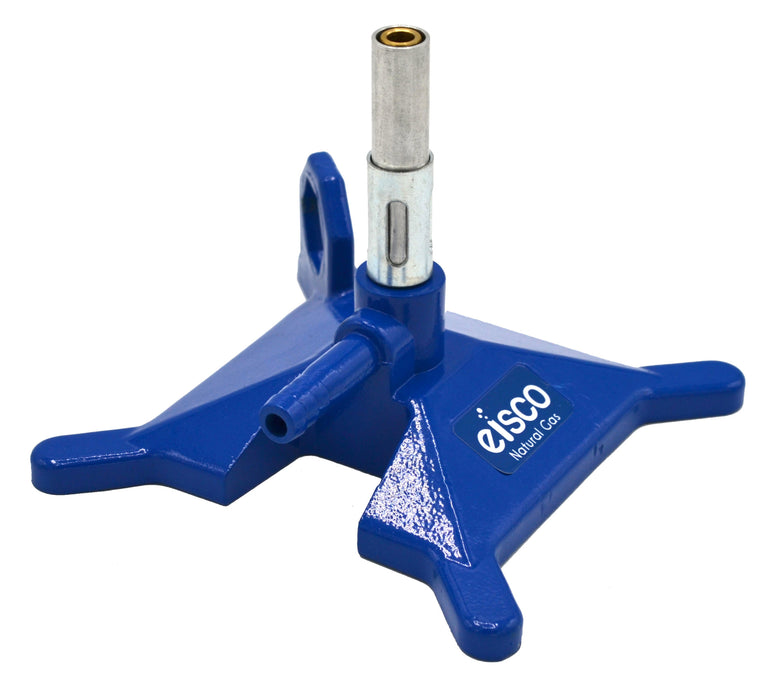

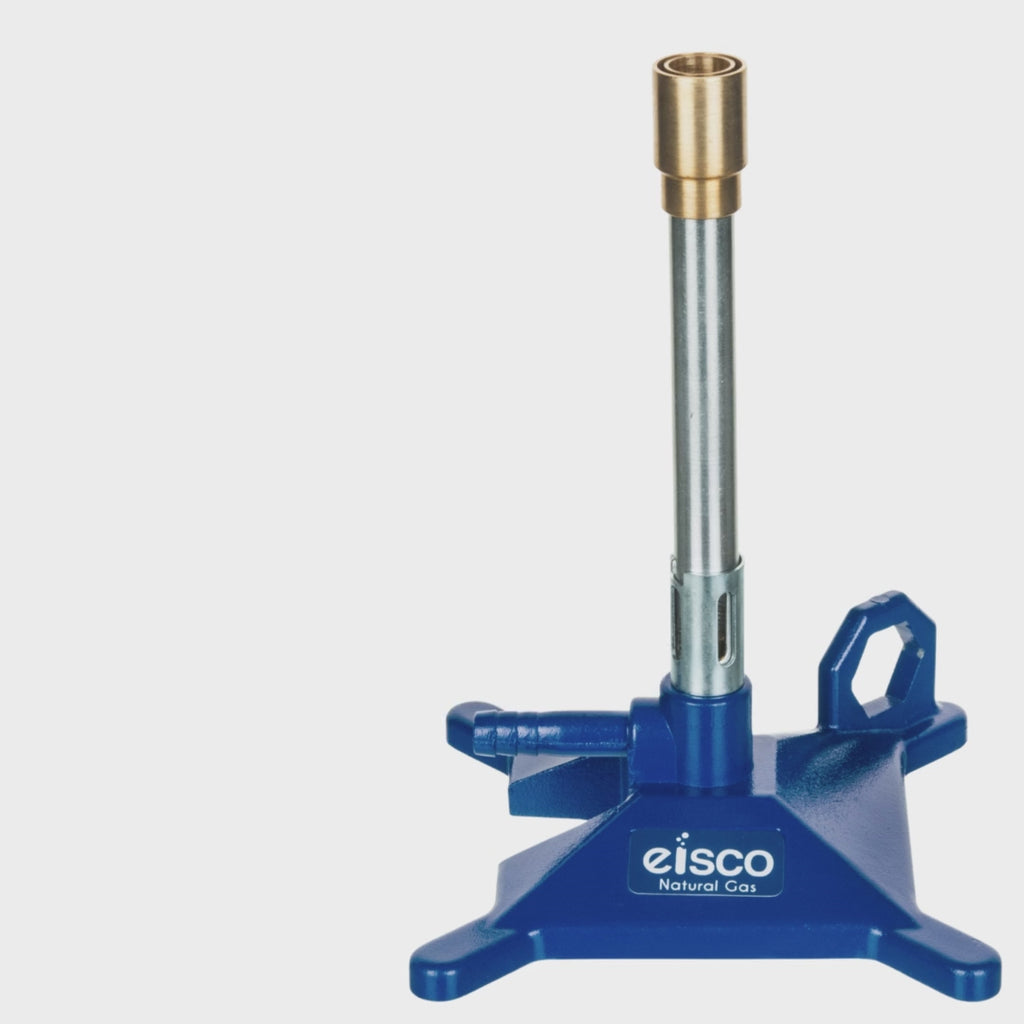

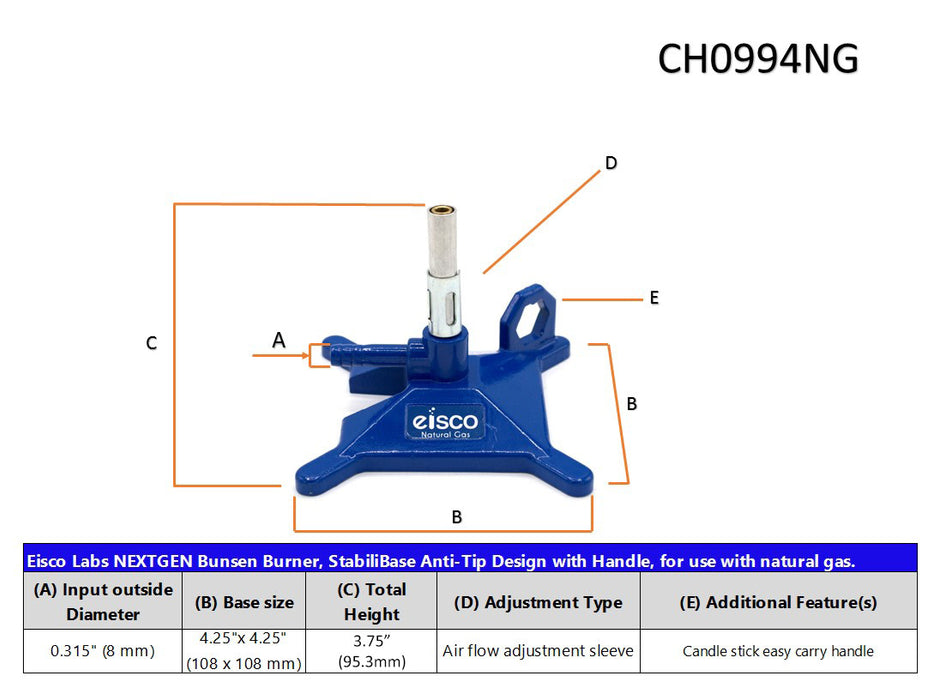

This basic micro Bunsen burner is used for safe continuous stream of flammable gas used for heating, sterilization and combustion. The total height of the burner is its best attribute for tight spaces, measuring in at 3.75” tall (95.3mm). Burner is designed to have the flame controlled via the valve at the gas output, and not at the burner. This is a simple and easy to use burner jetted for natural gas. Natural Gas Burners have a BTU range usually 800-1200. Maximum Temperature is approximately 1500° C (2732° F).
This burner is equipped with casted ribbed fuel input tube with an 8mm outside diameter - Recommended neoprene tube (not included) to connect burner to fuel source is Eisco Labs Neoprene Hose - available in 2 ft or 3 ft length options (CH0100A or CH0100B). Each end of the tubes has a flexible end that can fit a variable diameter of 0.28" to 0.42" (8-10mm) to accept a variety sizes on different burners.
Base of burner measures 4.25" wide and long.
