Van De Graaff Generator, Motor Driven, 7.9" Dome - 120/240V, 50/60Hz - 22" Tall

SKU PH0920A
Original price $370.99
Original price $370.99 - Original price $370.99
Original price $370.99
Current price $263.99
$263.99 - $263.99
Current price $263.99
  • MOTOR DRIVEN VAN DE GRAAFF || Perfect for demonstrating energy transformation from mechanical to electrical. This motor driven Van De Graaff is excellent for physics classrooms and exciting for learners of all ages
  • UP TO 220,000 VOLTS || Apparatus can generate an electrostatic charge of up to 220,000 volts in the right conditions. Motor is attached to the assembled base. Includes 3 prong power cord
  • 7.9" METAL SPHERE || Apparatus measures 22" in height and features a metal sphere measuring 7.9" (20cm) in diameter

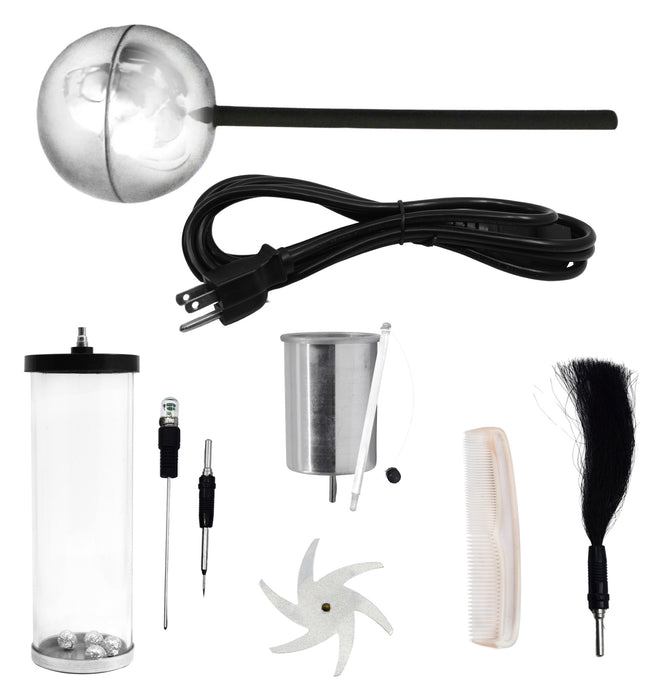

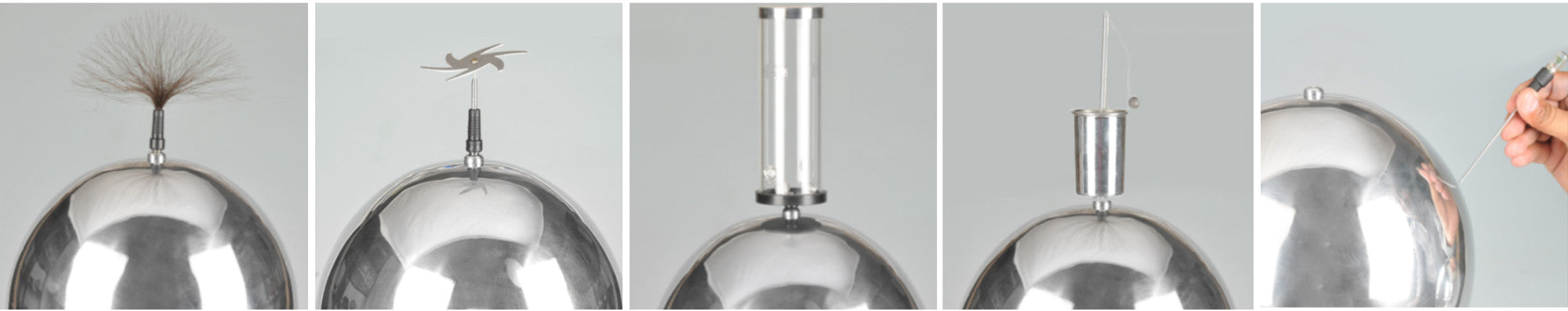

  • INCLUDES EXPERIMENT GUIDE & ACCESSORIES || Set comes with experiment accessories consisting of a 4" discharge wand, pillar with suspended metallised sphere, Faraday's pail, Perspex cylinder with metal caps and 4 metallised spheres, head of hair, point discharger, neon bulb and electric whirl. Included experiment guide provides instructions and student activity questions
In Stock - 25 Available
Expected to Ship Today
Original price $370.99
Original price $370.99 - Original price $370.99
Original price $370.99
Current price $263.99
$263.99 - $263.99
Current price $263.99
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

The Van De Graaff generator is a simple device designed for electrostatic experiments and where continuous source of high voltage is required. It can be used to demonstrate several physical concepts, including: electrostatics, conservation of charge, conduction, and ionization. Static electricity is a familiar concept we encounter on a daily basis. It explains why static cling affects our clothes, the shock we sometimes experience when touching a doorknob on a dry winter day, and why we can cause a friend's hair to stand on end by “charging up” a balloon.

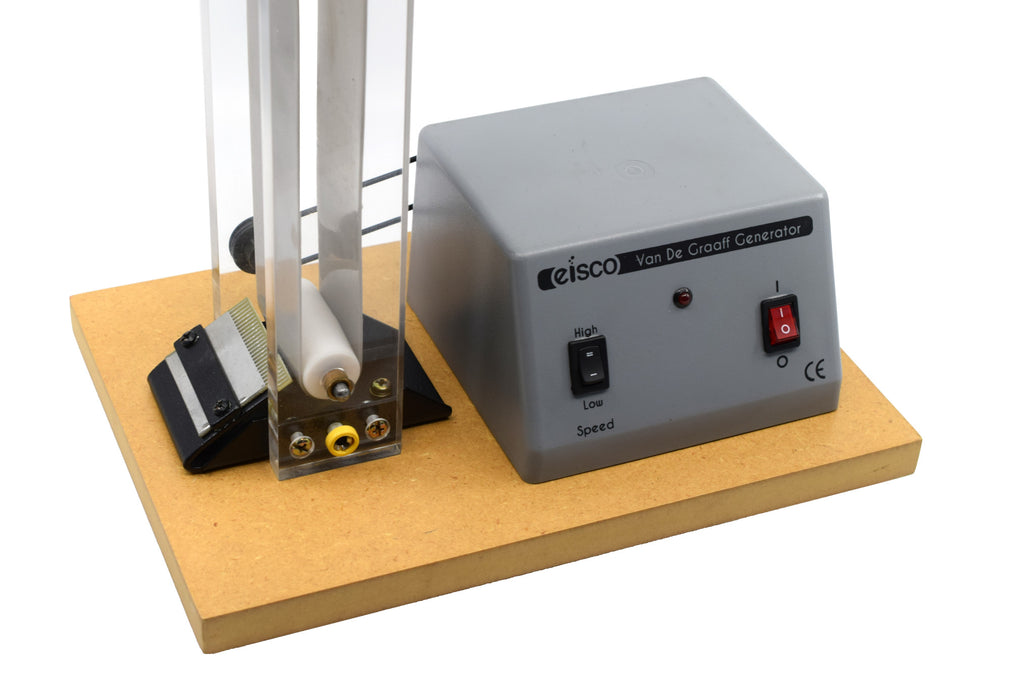

This DC motor driven Van De Graaff Generator measures 22" tall and produces up to 220,000 Volts. Ideal for demonstrating the transformation of energy from mechanical to electrical. Set includes a polished and hand spun 7.9" Van de Graaff Dome, 4" discharge wand, assembled base with attached DC motor, 3 prong power cord, electrostatics accessories kit and an experiment guide with activity questions for learners.

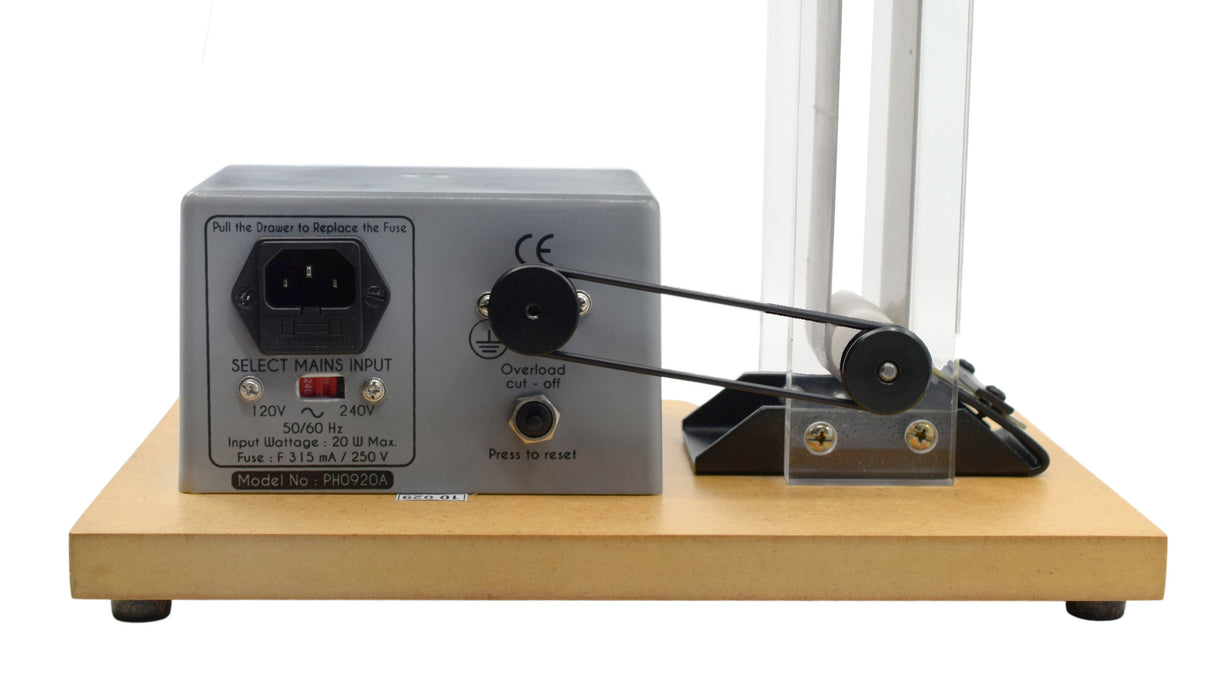

  • 120/240V
  • 50/60Hz
  • Input Wattage: 20 W Max.
  • Fuse" F 315mA / 250V
  • Charge collecting Belt: Silicon rubber having excellent insulation resistance.
  • Tracking: Belt-tracking easily adjusted
  • Charge collecting combs: Aluminium mesh, clearly visible
