Eisco - Wheatstone Bridge One Meter Four-Gap with Brass Strips and Hardwood Base for Resistance Measurement and Physics Education

SKU PH1156B
In Stock - 13 Available
Expected to Ship Today
Original price $139.99 - Original price $139.99
Original price $139.99
$106.49
$106.49 - $106.49
Current price $106.49
  • Ships from Rochester, NY
  • US Customer Service
  • 30-Day Return Policy
For volume discounts,
Call (585) 360-2295 or
Get a Quote
  • Ships from Rochester, NY
  • US Customer Service
  • 30-Day Return Policy
Please note, this item is "Build to Order" and will take up to 90 days to ship after placing your order.
Description
  • PRECISE RESISTANCE COMPARISON TOOL || Designed for accurate measurement of unknown electrical resistance using the classic Wheatstone bridge principle.

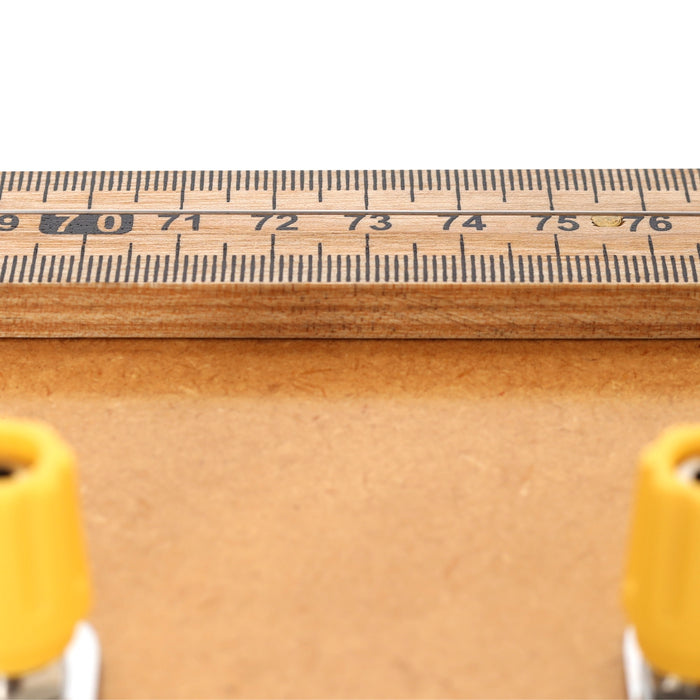

  • FOUR-GAP METER BRIDGE DESIGN || Features a 1-meter resistance wire with millimeter graduations for detailed measurement and adjustments.
  • DURABLE HARDWOOD CONSTRUCTION || Broad, plated brass strips are mounted on a polished hardwood base with a built-in measuring meter for convenience.

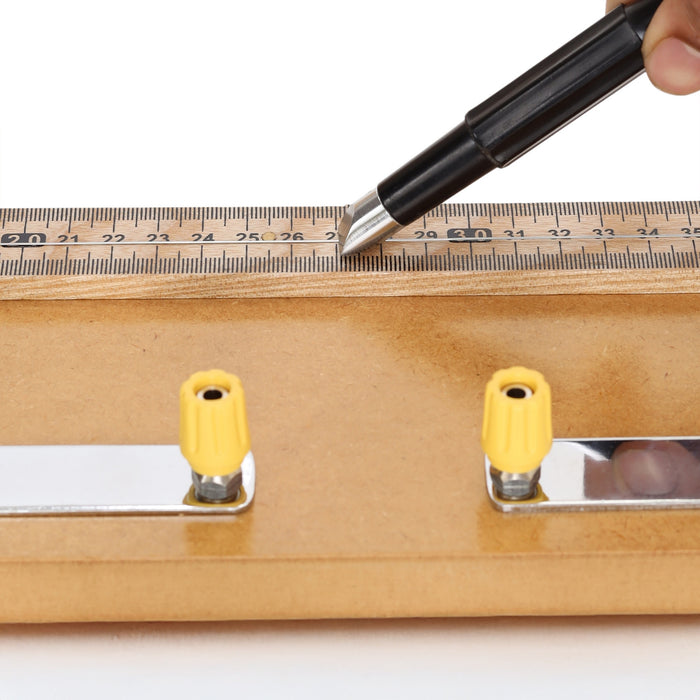

  • COMPLETE WITH JOCKEY CONTACT || Includes a robust jockey (moveable contact) with lead and a sprung clip for secure storage.
  • CLASSROOM-READY || Ideal for physics education, particularly lessons involving Ohm’s Law, series/parallel circuits, and resistance comparison.

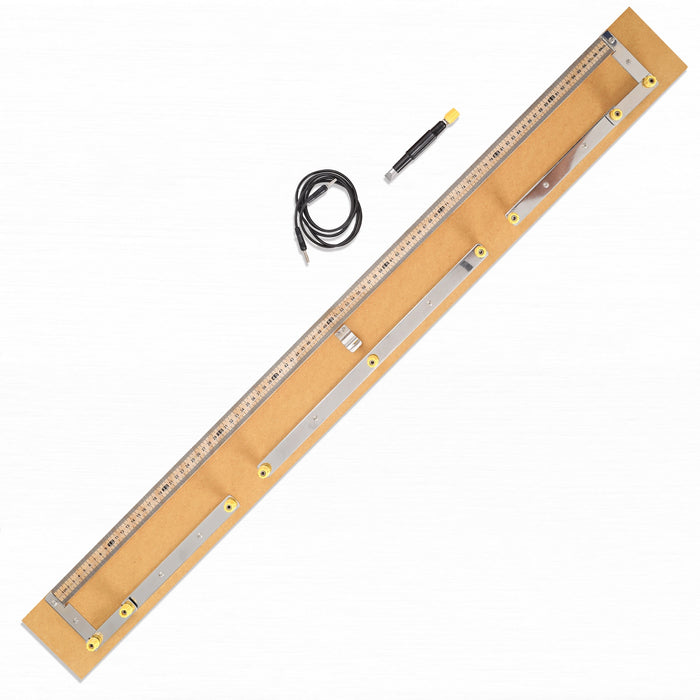

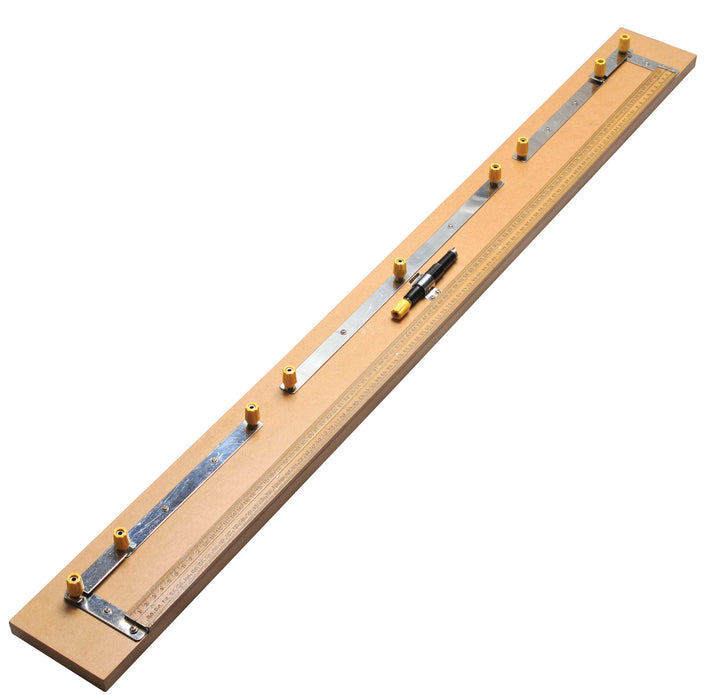

The Eisco One Meter Wheatstone Bridge is a classic four-gap meter bridge, ideal for measuring unknown resistances and performing resistance comparison experiments in physics labs. The unit consists of heavily plated brass strips mounted securely to a solid hardwood base. A resistance wire with millimeter-scale graduations is stretched across the meter, designed to maintain accuracy with a negligible temperature coefficient.

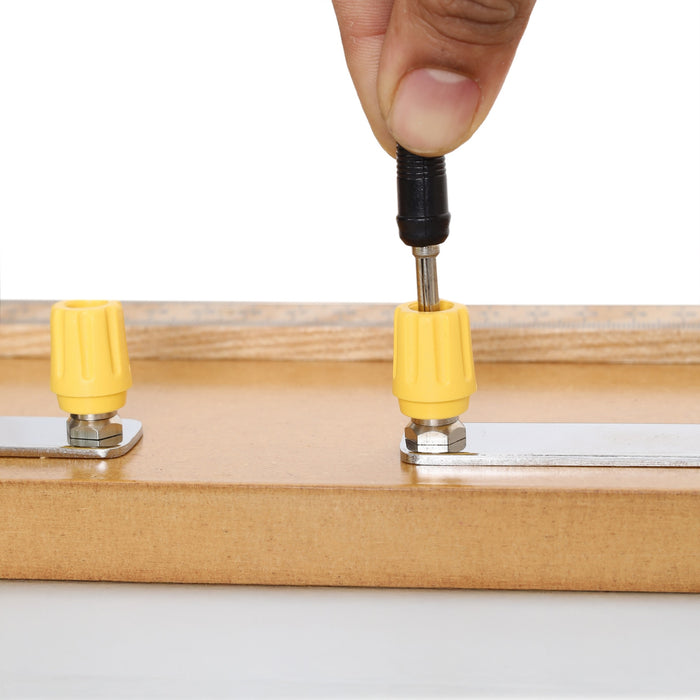

Five terminal posts allow for the attachment of resistors and a power source, while two additional brass strips can be used to eliminate the central gaps as needed. The included jockey contact is used to make precise sliding contact along the resistance wire. A convenient measuring meter is embedded into the baseboard for easy reading. This apparatus supports advanced instruction in Ohm’s Law, circuit balancing, and bridge circuits, and is ideal for NGSS-aligned high school and college physics curricula.
