Premium Binocular Microscope - Finite Color Corrected Optical System, LED Illumination - 4X, 10X, 40X (S) and 100X Oil (S) - 30° inclined Siedentopf Head, 360° Rotatable - Eisco Labs

Premium Binocular Microscope - Finite Color Corrected Optical System, LED Illumination - 4X, 10X, 40X (S) and 100X Oil (S) - 30° inclined Siedentopf Head, 360° Rotatable - Eisco Labs

by Eisco Labs
SKU PM201
$996.99 - $996.99
$996.99
$996.99 - $996.99
$996.99
  • Premium binocular microscope with finite color corrected optical system
  • Coaxial coarse and fine adjustment
  • 5.5" x 5.2" graduated double layer mechanical rectangular stage with 2" x 3" cross travel on ball bearing with co-axial controls
  • 4X, 10X, 40X (S) and 100X Oil (S) anti fungus coated, scratch proof plan objectives
  • Microscope measures 14.5" tall, 11" long and 8.5" wide
Low Stock - 1 Remaining
Expected to Ship Mon Mar 27
$996.99 - $996.99
$996.99
$996.99 - $996.99
$996.99
  • Ships from Rochester, NY
  • US Customer Service
  • 30-Day Return Policy
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

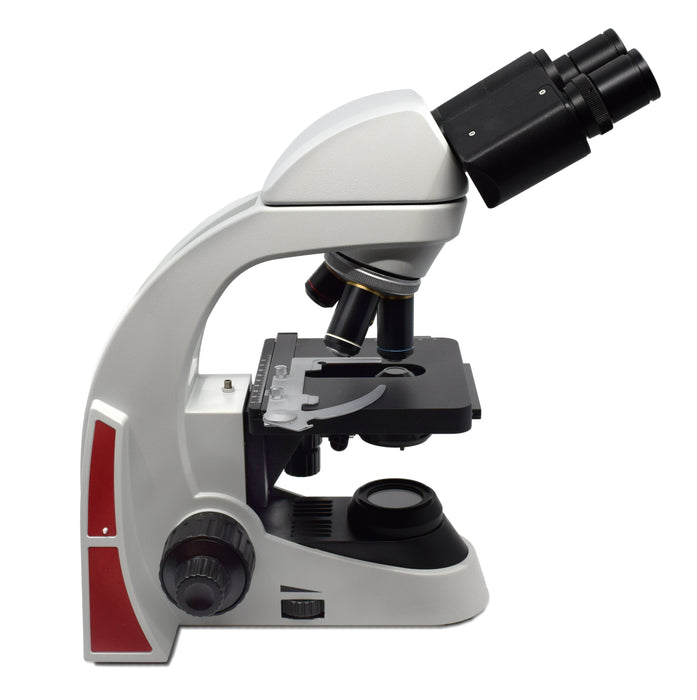

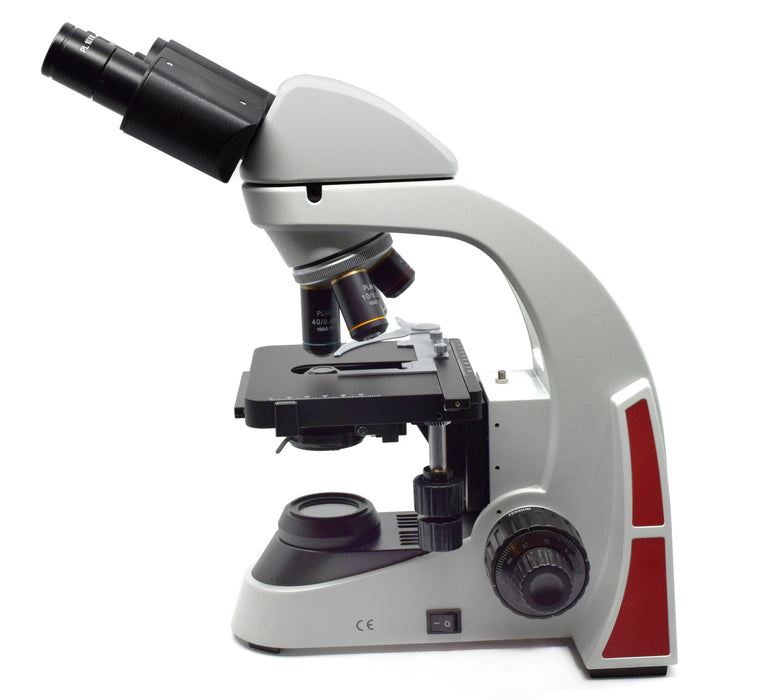

High quality microscope with premium features and finish.  Microscope measures 14.5" tall, 11" long and 8.5" wide.

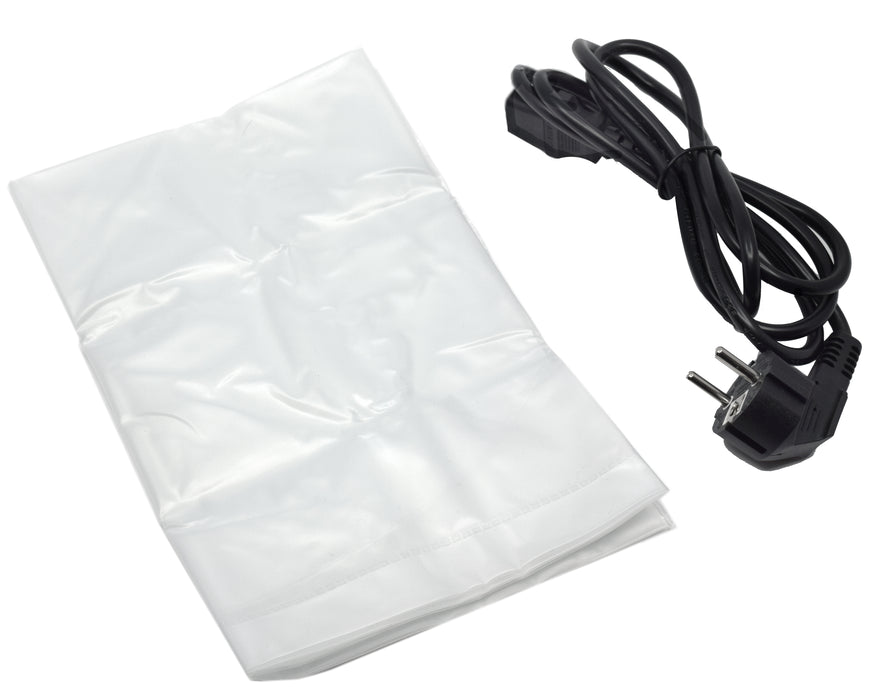

Dust cover and 100V - 240V, CE Approved Power Supply included.



Specifications

  • Optical System: Finite color corrected optical system.
  • Viewing Head: 30° inclined Siedentopf head, interpupillary distance: 50-75mm, ±5 diopter adjustable, 360° rotatable
  • Eyepiece: Wide field plan eyepiece 10x, FOV 18mm
  • Objectives: Plan (Anti fungus coated, Scratch proof), 4X, 10X, 40X (S) and 100X Oil, (S)
  • Nosepiece: Ball bearing loaded, inward quadruple nosepiece with precise, positive stops for centered alignment of objectives
  • Stage: 5.5x5.2" (140x132mm) graduated double layer mechanical rectangular stage, with 2" (X) x 3" (Y) cross travel on ball bearing with co-axial controls
  • Focusing Movement: Coaxial coarse and fine adjustment, with coarse adjustment stop and tightness adjustment. Range: 25mm, prescision: 0.002mm
  • Light Source: Illumination system LED 3W with intensity control regulator
