- DC voltage 0-12V continously variable and adjustable at 5A capacity
- 12V AC at 5A capacity is also provided
- Both the outputs can be used simultaneously to the full capacity

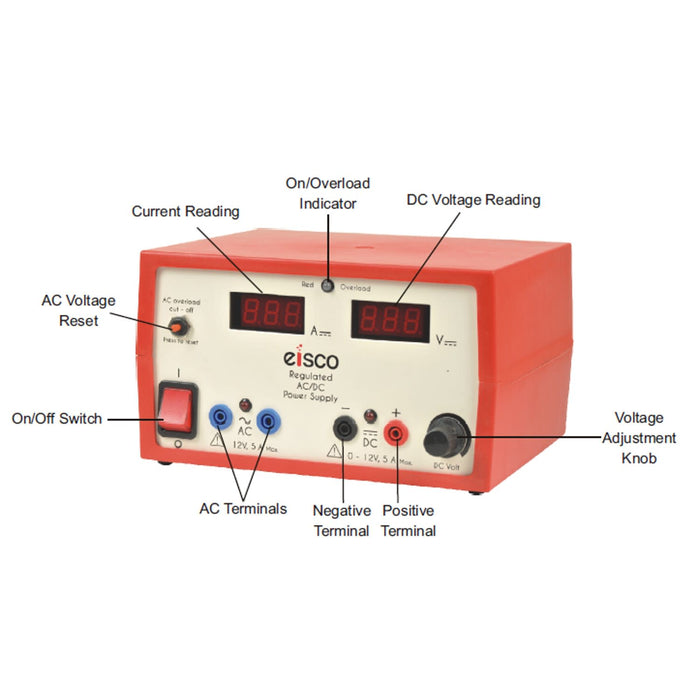

- The output voltage & current are displayed on the digital display
- DC output voltage is overload and short circuit protected while thermal cut-off is provided for the AC overload protection

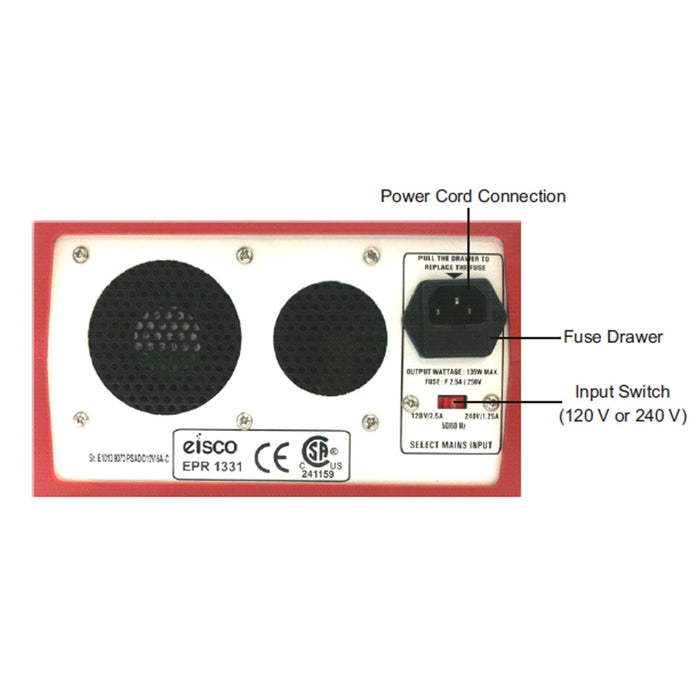

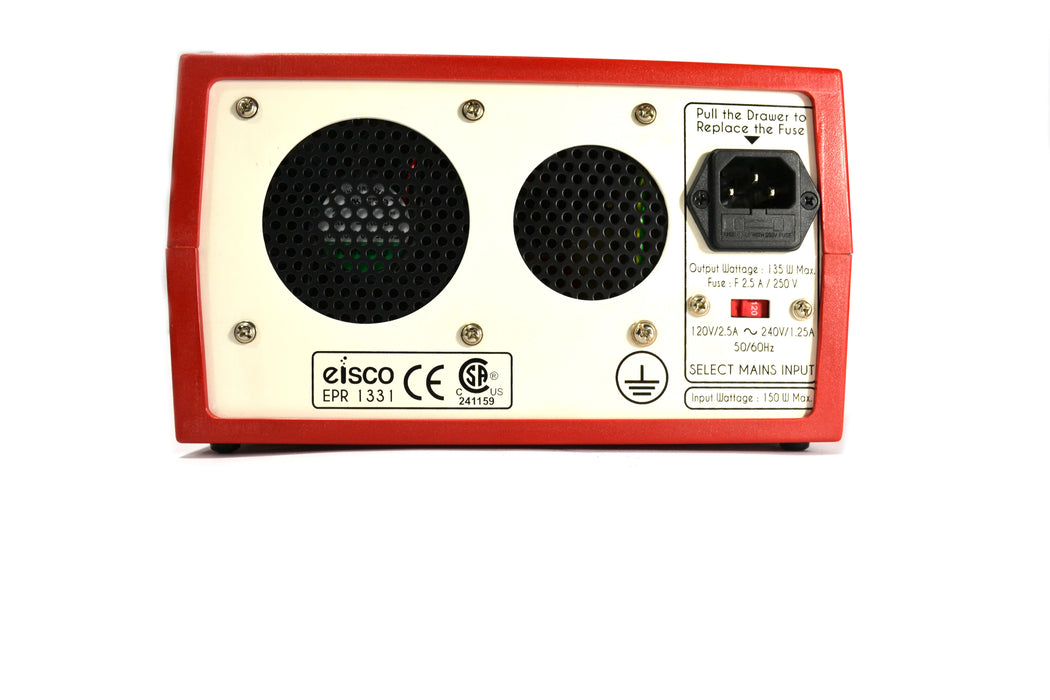

Any extremely versatile independent power dual output power supply. Both outputs can be used simultaneously and viewed via independent LED displays. DC: 0-12V is regulated and continuously variable. AC: 12V at 5amps. Safety features include overload protection indicator, thermal cut-off, glass fuses at the input level, and a sapre fuse in the main input socket. The unit has been tested for leakage, burn test, insulation test and is CSA approved. The unit operats on 120V AC or 240V ACusing a voltage selector switch on the back of the unit. Output sockets are standard 4mm banana plug sockets. Riple and noise is measured at 50mVp-p. (Banana Plugs Not Included)
