Eisco Labs Ray Box

SKU PH0602A
Original price $40.99
Current price $23.99
In Stock - 47 Available
Expected to Ship Fri Sep 17
Original price $40.99
Current price $23.99
By checking out, you agree to terms of service
what's this?
Some items have built-in volume discounts, but if you'd like a quote, call us or click below. You may get a better deal than the rates listed here!
Large or special order? Call (585) 360-2295 or

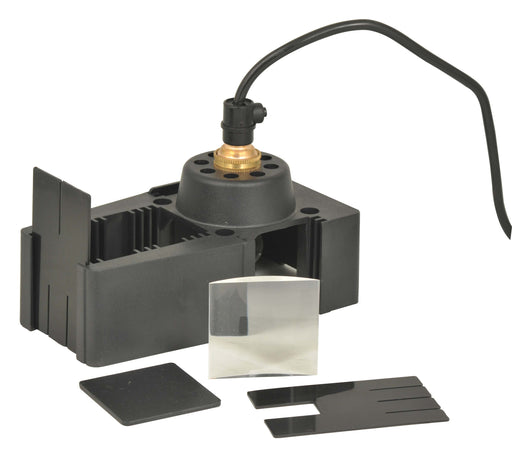

EISCO Ray Box

(1) Ray box, (2) meter of flex, (2) 4mm plugs, (1) 12V - 24W B15 bulb, (1) bulb holder, (1) slit plate, (2) aluminium blanking plates

This traditional Ray box has three openings, two of which can be used simultaneously by two sets of pupils. The two side openings each havetwo slots for accommodating blanking plates, 50 mm slide accessories. A front opening provides seven grooves for accessories and lenses which have been designed so that when used with a biconvex cylindrical lens of 75 mm focal length, divergent or convergent rays are obtained through the slit plate. Only a minimum of accessories are needed to cover a wide range of optics experiments. Supplied with 2 meter of flex and two 4mm plugs, 12V, 24W B15 bulb, bulb holder, slit plate, aluminium blanking plates. Supplied with working instructions.
