Advanced Ripple Tank Set with Projection Screen - Study Wave Properties

• STUDY WAVE PHENOMENA || Comes complete with all accessories needed for wave investigations: (1) Ripple tank, (1) Vibration Generator, (1) Wave monitor unit, (1) Strobe lamp, (1) Projection screen, (1) Projection mirror, (1) Wave dippers, (1) Lever arm & support, (1) Set of footers with adjustment screws, (1) Set of lucite/perspex objects. Requires an adjustable DC voltage power supply, NOT INCLUDED
• STRONG LAMP || Intensely illuminated by included lamp for effective student observations
• PROJECTION SCREEN || The Built in projection screen eliminates the need for a separate overhead projector
• OPTIMIZED DESIGN || The tank is comprised of a reinforced frame with foam beaches to negate reflections
• 55-PAGE MANUAL || Includes comprehensive 55-page Experiment Guide with setup instructions, teacher's guide, and student activities

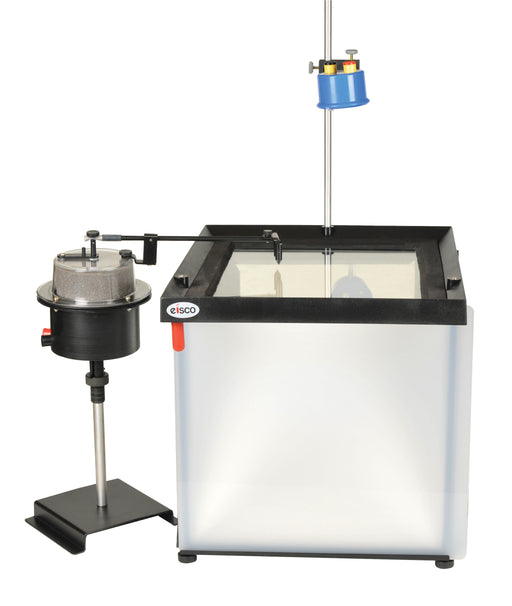

This Advanced Ripple Tank comes complete with all accessories needed for wave investigations.

Tank is intensely illuminated by a strong light source, and synchronized with the wave generator to help students observe the wave patterns on a workgroup table.

The frame is made of reinforced plastic and with foam beaches (to negate reflections). Includes a mirror, which can be mounted at 45 degrees, to project the ripples onto a translucent screen on one side of the unit.

Each water wave acts much like a curved lens. The crest of the wave is seen as a bright region and the the trough is seen as a dark region. Inside the ripple tank is a mechanical vibrator attached to a wave generator that produces either point wavelets or parallel wave fronts.

Various obstructions and barriers can be inserted into the path of the wave, such as a single slit, a double slit or an edge.

Set includes:

(1) Ripple tank

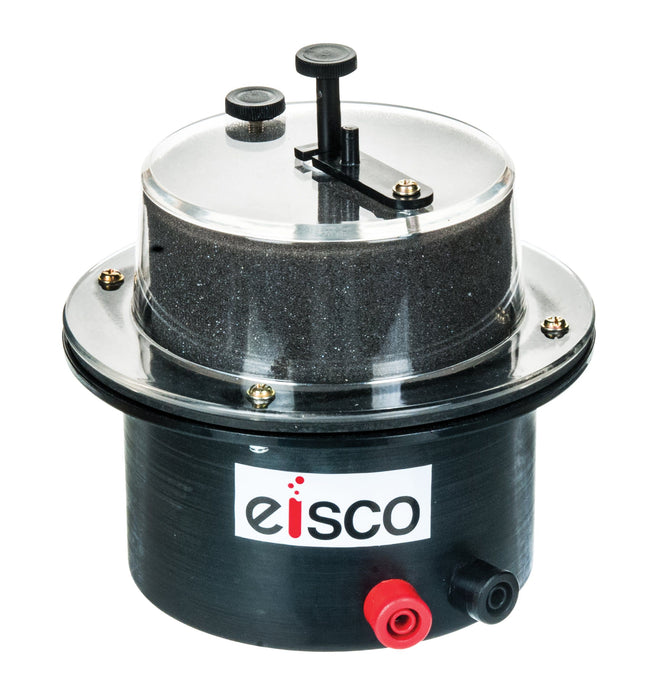

(1) Vibration generator
(1) Wave monitor unit
(1) Strobe lamp
(1) Projection mirror
(1) Projection screen
(1) Wave dippers
(1) Lever arm and support
(1) Set of footers with adjustment screws
(1) Set of lucite/perspex objects
(1) Experiment guide with setup instructions, teacher's guide, and student activities

Required but not included: (1) Adjustable DC voltage power supply
